EnviroGear® V Series Pumps Kicking Viking® in the Asphalt

Introducing the EnviroGear® V Series Asphalt Pump. We understand that pumping asphalt is a challenge as it changes temperatures and can range from a solid to a liquid with a wide variety of fluid characteristics depending on the chemical makeup. And - let’s face it - the competition isn’t getting the job done. EnviroGear V Series pumps address and overcome these challenges, and do so in a way that is safe, reliable and economical.

Available Materials
  • Cast Iron
Max Temperature
  • 450°F (232°C)
Capacity
  • 90 gpm to 450 gpm (20 m³/h to 102 m³/h)
Max Pressure
  • 100 psi (6.9 bar)
logo_choice Select Your Pump

Features

The V Series’ innovative design includes a wide variety of new and standard-setting features that have established a series of industry firsts within the asphalt market.

Industry’s Largest Jacketed Surface Area

The V Series Pumps feature up to 35% more jacket surface area than the competition, which improves system reliability by incorporating the following features:

  • The unique ability to utilize the jacketed head and pressure relief valve (PRV) simultaneously
  • Jacketing located behind the pump rotor, which removes a known cold spot that can result in hard startups and premature pump and seal failures
  • The industry’s largest jacketed surface area on the pump case and PRV that enables uniform heating whether using steam or hot oil

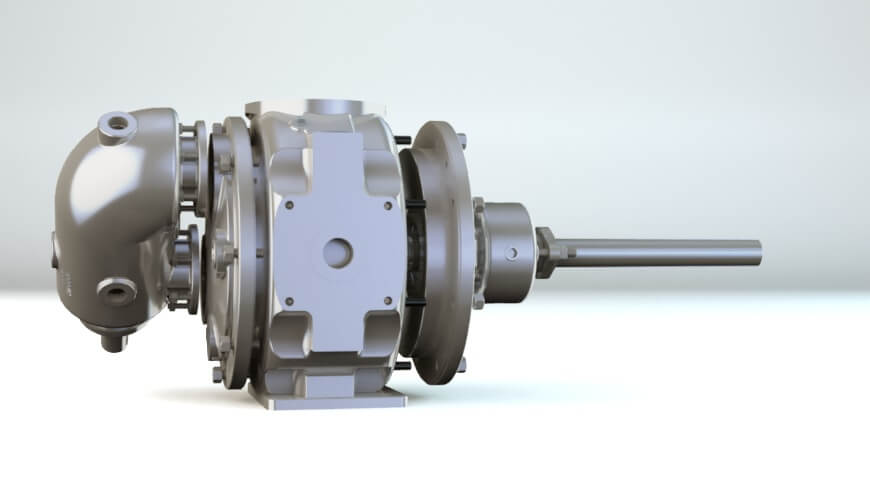

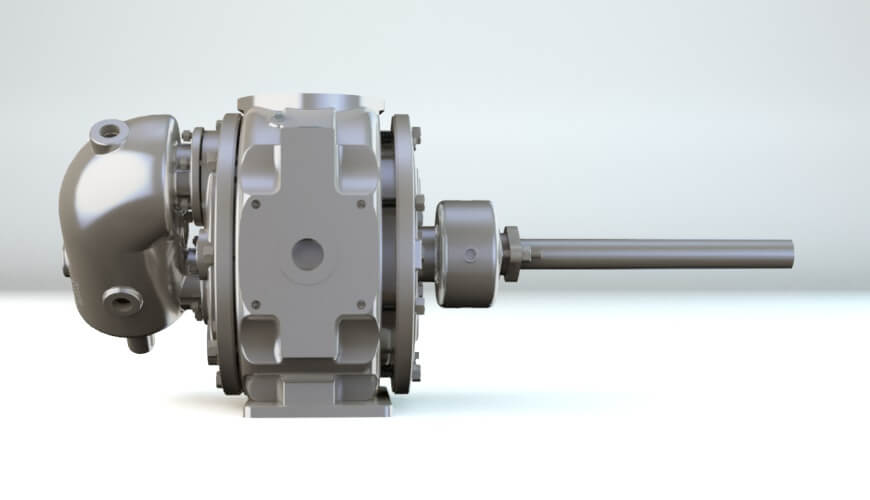

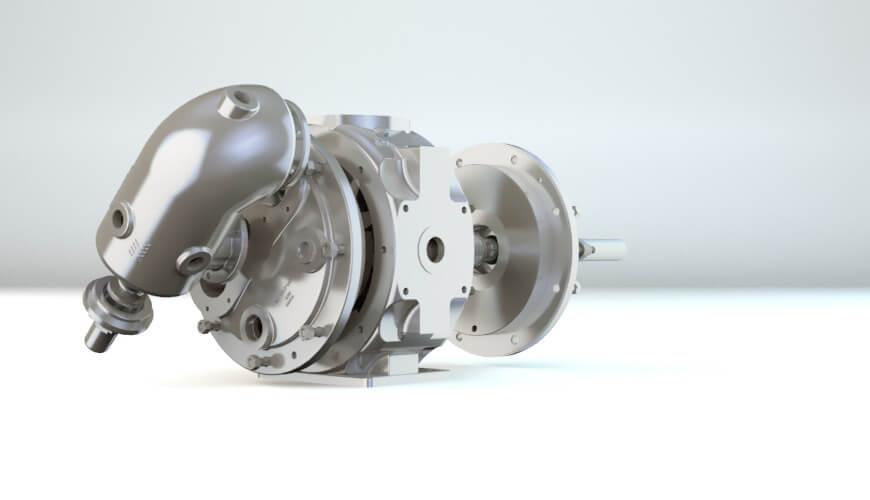

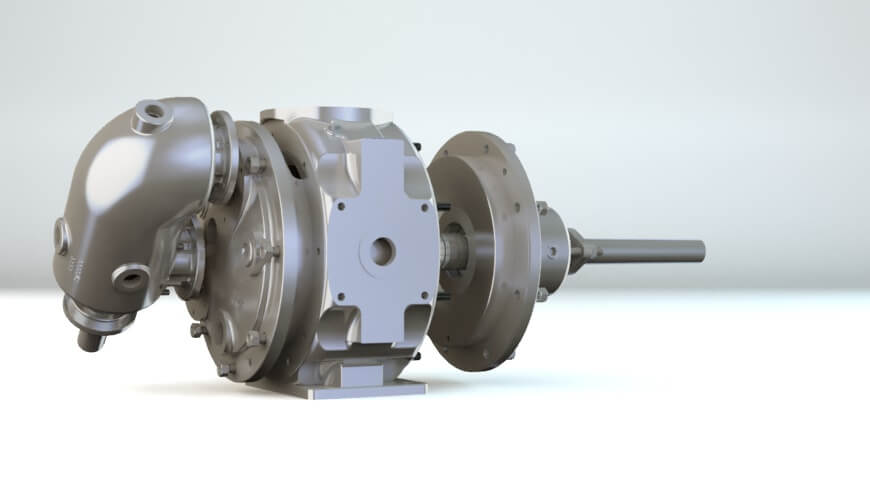

V Series Internal Gear Asphalt Pump

v-series_comp-jacket1

Image above represents typical jacket surface area of competitor pumps

v-series_envg-jacket1

V Series Jacketed Surface Area

v-series_comp-jacket2

Image above represents typical jacket surface area of competitor pumps

v-series_envg-jacket2

V Series Jacketed Surface Area

v-series_direct-replacement

First Direct Replacement for Viking® 34 Series Pump & Parts

First drop-in replacement for the Viking® 34 Series Pump. Replacing an existing Viking pump usually requires no modification to the piping, driver, baseplate or coupling, while also keeping flow rates unchanged. V Series components are also part-for-part interchangeable with the Viking 34 Series Pump and offer very specific design enhancements to improve reliability. See our Cross Reference Guide.

ve-series_rotatable-flanges

Rotatable Flanges

Allows the operator to use both right-handed and left-handed flange orientations as needed without additional lead times or costs associated with left-hand configuration pumps.

v-series_ductile-iron

High-Strength Ductile Iron Gear Material as Standard

High-strength ductile iron is EnviroGear’s standard offering with other hardened material component options available to provide improved pump life:

  • Surface hardened case, head, rotor, idler and shaft
  • Special high-temperature hardened steel idler pin
  • Hardened cast iron idler bushing, RBS radial bushing, and stationary thrust washer

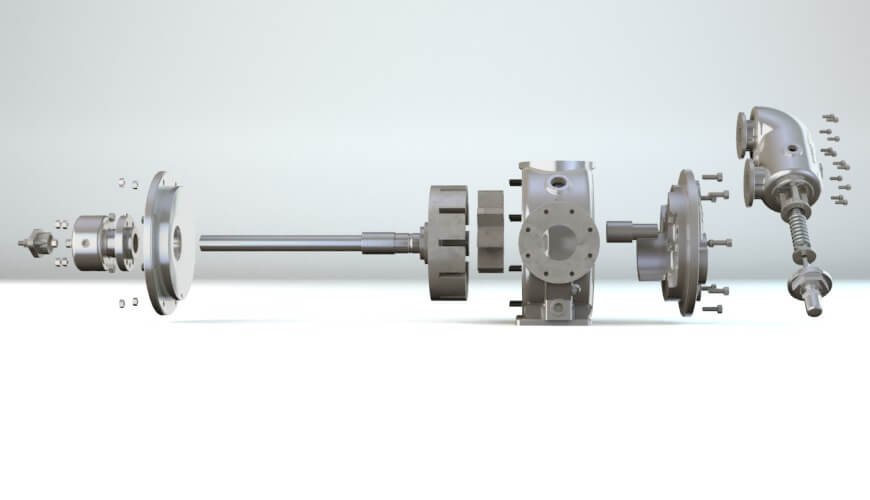

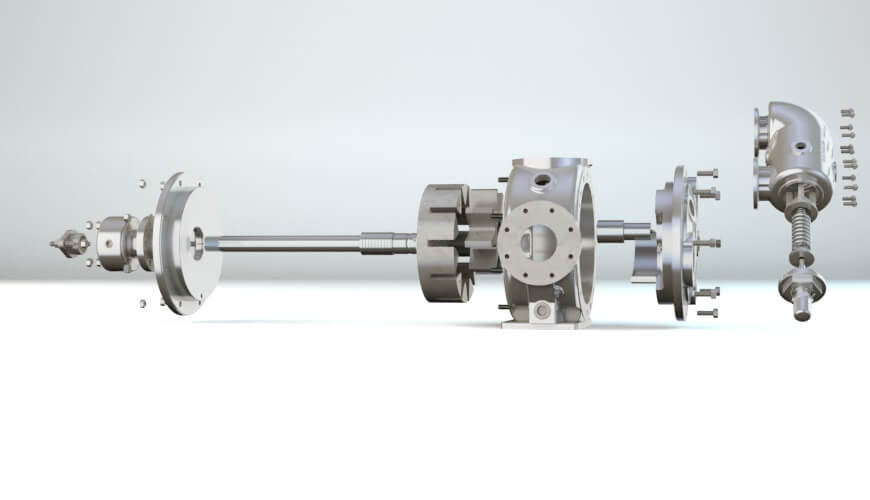

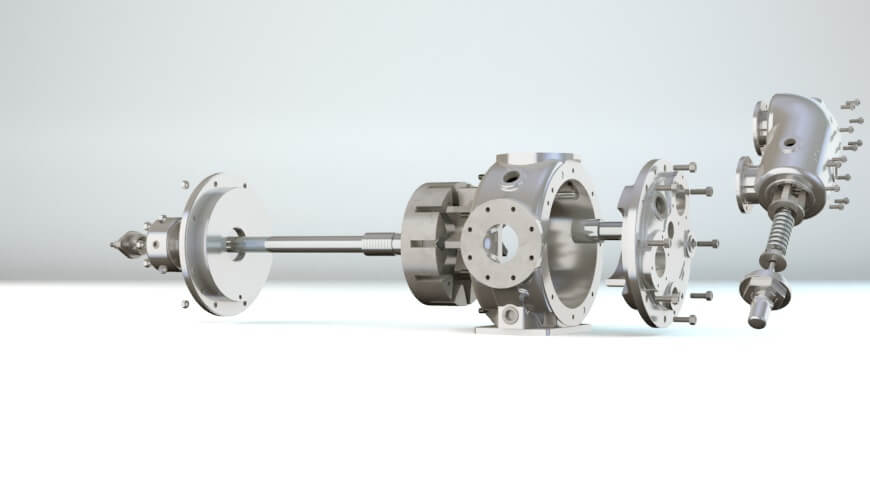

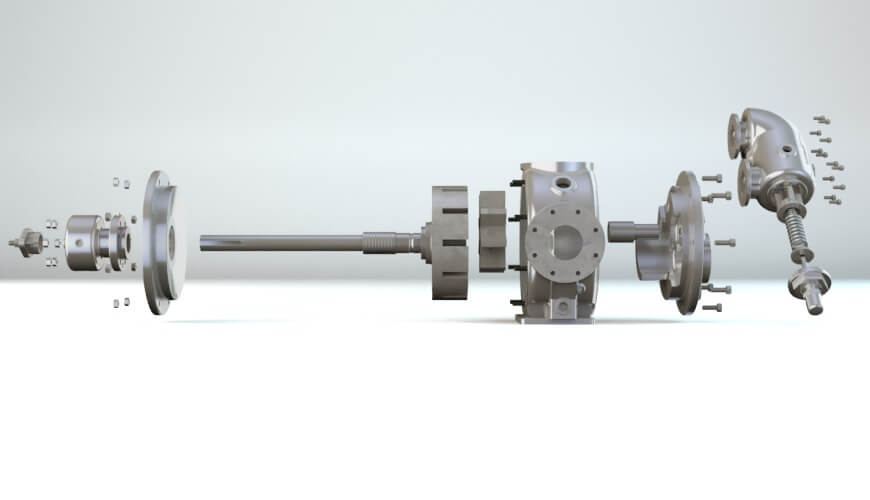

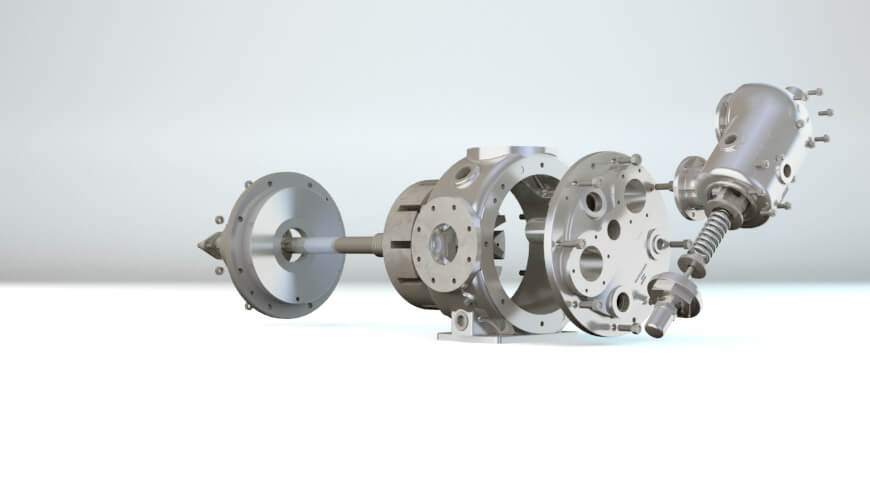

1Rotor Bearing Sleeve (RBS)

The Rotor Bearing Sleeve (RBS) and seal chamber is designed to accept a wide range of bushing options as well as sealing technologies such as packing, cartridge triple-lip seal, and cartridge mechanical seal.

2Rear Plate with Jacketing

Provides jacketing behind the rotor to eliminate cold spots

3Heavy-Internal Clearance Options

A wide range of internal clearance options are available, which allows optimal performance in a wide range of applications

4Hardened Idler Pin

Standard on all pump sizes for maximized operational life

5High-Strength Rotor Standard

High-strength, ductile iron rotor comes standard on all sizes, eliminating the need for costly, long lead-time steel rotors

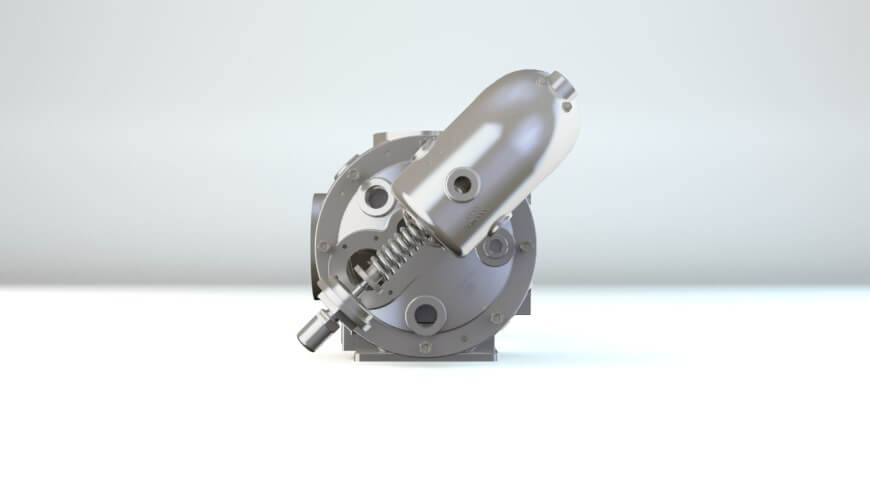

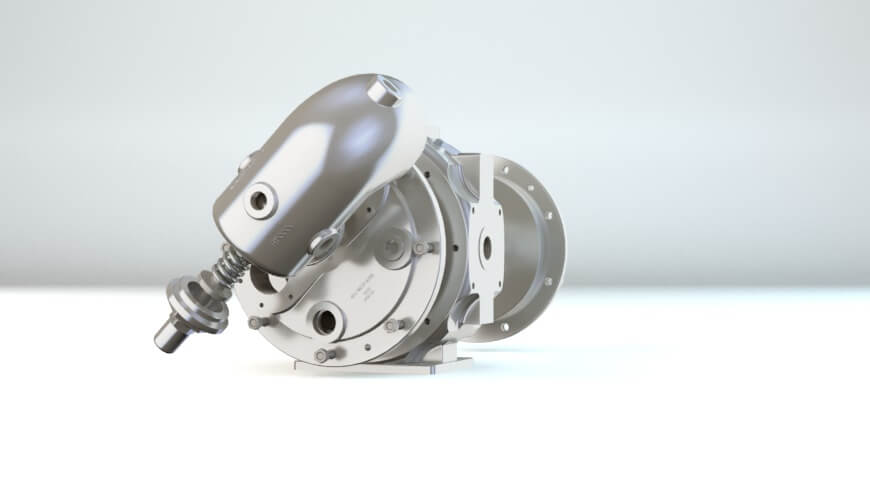

6Jacketed Head with PRV

Jacketed head designed to incorporate an optional pressure relieve valve (PRV), offering pressure protection with improved head heating

7Seal/Packing Gland

Securely houses seal or packing around rotor shaft.

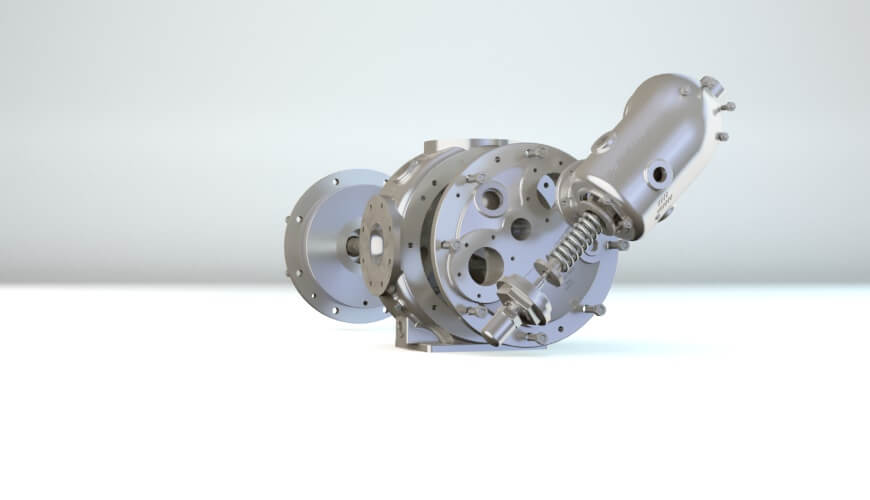

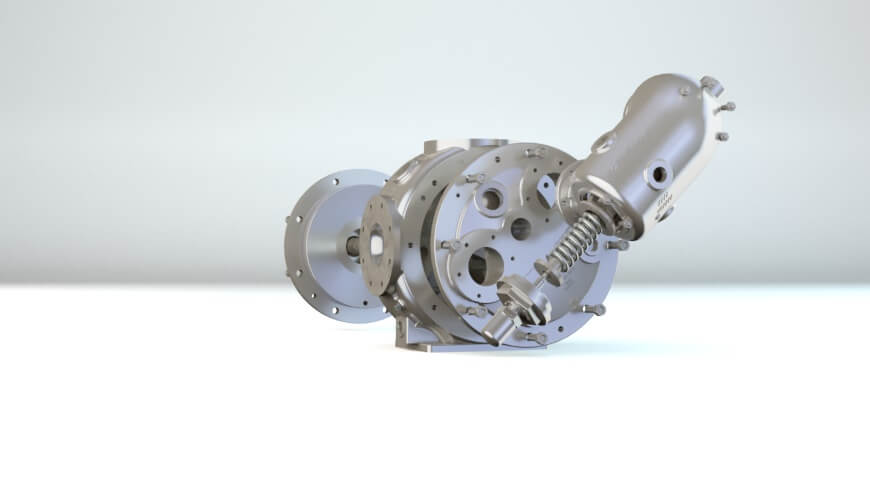

Envirogear V Series Pump


Specifications and Performance

Model Port Sizes¹ Pump Only
V2-55 2-1/2" ANSI 180 lb (82 kg)
V2-133 3" ANSI 350 lb (160 kg)
V2-254 4" ANSI 530 lb (240 kg)
V2-423 5" ANSI 750 lb (340 kg)

(1) Flanged connections meet Class 125# ANSI

Model RPM GPM (m³/h) Max Discharge Pressure PSIG (BAR)¹
V2-55 420 90 (20) 100 (6.9) > 20 cSt
V2-133 350 200 (45) 75 (5.2) > 20 cSt
V2-254 280 280 (64) 75 (5.2) > 20 cSt
V2-423 280 450 (102) 75 (5.2) > 20 cSt

(1) Maximum pressure listed reflects maximum differential pressure and maximum allowable working pressure

Competitor Model Cross Reference

EnviroGear V Series EnviroGear G Series EnviroGear E Series Viking®
V2-55 G1-55 E1-55 LQ34
V2-133 G1-133 E1-133 Q34
V2-254 - - M34
V2-423 - - N34

Note: See the EnviroGear Competitor Dimensional Comparison Guide for detailed dimensional information
Viking® is a registered trademark of Viking Pump, Inc., a unit of IDEX Corporation.
