Sliding Vane Pumps
Sliding vane pumps are designed with unique "self-adjusting" vanes that allow them to maintain near-original volumetric performance during the life of the pump — meaning these pumps are not subject to efficiency-robbing slip that occurs from wear in gear and lobe pumps.
GNX Series NP Series X Series
Sliding Vane Pumps
Positive Displacement sliding vane pumps are designed with unique "self-adjusting" vanes that allow them to maintain near-original volumetric performance during the life of the pump — meaning these pumps are not subject to efficiency-robbing slip that can occur with other pump technologies.
Centrifugal Pumps
The Blackmer Centrifugal Pumps are designed specifically to operate in severe process industry applications, and contain oversized bearings to offer greater load capacity and extended bearing life. These pumps increase productivity, while offering maximum reliability in the toughest of applications.
Blackmer Centrifugal

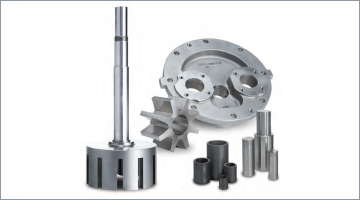

Internal Gear Pumps
Innovative, high-quality Blackmer industrial internal gear pumps offer safe and efficient transfer of viscous, high-temperature, high-value and/or hard-to-seal fluids. Additionally, internal gear pumps offer all the advantages of positive displacement pump technology.

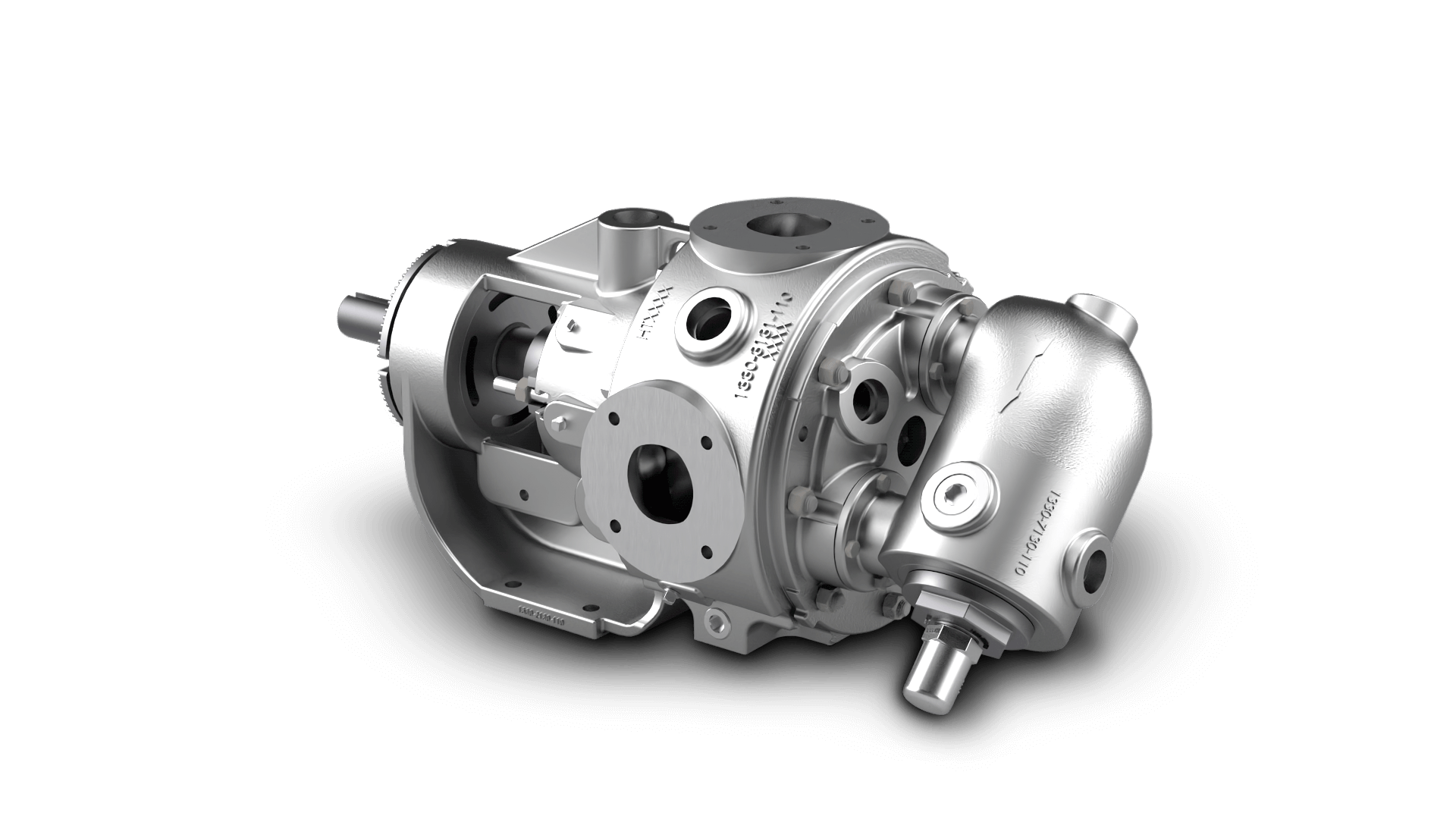

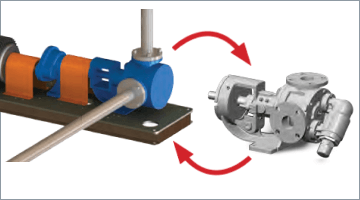

G Series
Sliding Vane Pumps
Sliding vane pumps are designed with unique "self-adjusting" vanes that allow them to maintain near-original volumetric performance during the life of the pump — meaning these pumps are not subject to efficiency-robbing slip that occurs from wear in gear and lobe pumps.
SGL Series X Series XL Series
Oil-Free Reciprocating Gas Compressors
Blackmer oil-free gas compressors deliver high efficiency in handling propane, butane, anhydrous ammonia and other liquefied gases. They are ideal for railcar unloading and vapor recovery applications. The single-stage, reciprocating compressors are designed to give maximum performance and reliability under the most severe service conditions. All pressure parts are of ductile iron construction for greater resistance to both thermal and mechanical shock. They are designed for ease of maintenance, with all components readily accessible.
NG Series
Internal Gear Pumps
Innovative, high-quality Blackmer industrial internal gear pumps offer safe and efficient transfer of viscous, high-temperature, high-value and/or hard-to-seal fluids. Additionally, internal gear pumps offer all the advantages of positive displacement pump technology.

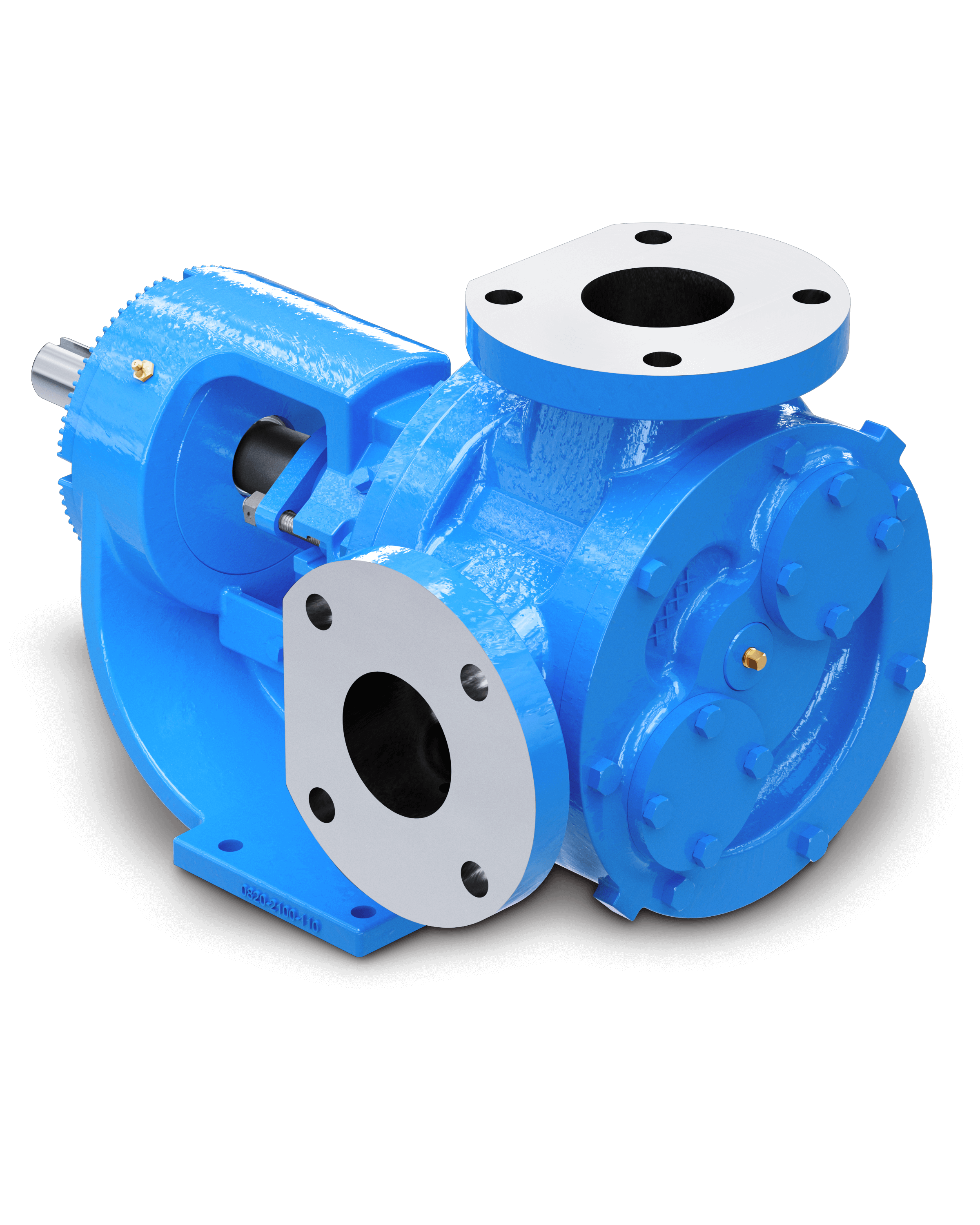

G Series & EV6900
Sliding Vane Pumps
Sliding vane pumps are designed with unique "self-adjusting" vanes that allow them to maintain near-original volumetric performance during the life of the pump — meaning these pumps are not subject to efficiency-robbing slip that occurs from wear in gear and lobe pumps.
TX Series TXV Model STX Series
Sliding Vane Pumps
Sliding vane pumps are designed with unique "self-adjusting" vanes that allow them to maintain near-original volumetric performance during the life of the pump — meaning these pumps are not subject to efficiency-robbing slip that occurs from wear in gear and lobe pumps.
ML Series HXL Series
Sliding Vane Pumps
Sliding vane pumps are designed with unique "self-adjusting" vanes that allow them to maintain near-original volumetric performance during the life of the pump — meaning these pumps are not subject to efficiency-robbing slip that occurs from wear in gear and lobe pumps.
STX Series
Sliding Vane Pumps
Sliding vane pumps are designed with unique "self-adjusting" vanes that allow them to maintain near-original volumetric performance during the life of the pump — meaning these pumps are not subject to efficiency-robbing slip that occurs from wear in gear and lobe pumps.
STX Series X Series GNX SeriesReciprocating Gas Compressors

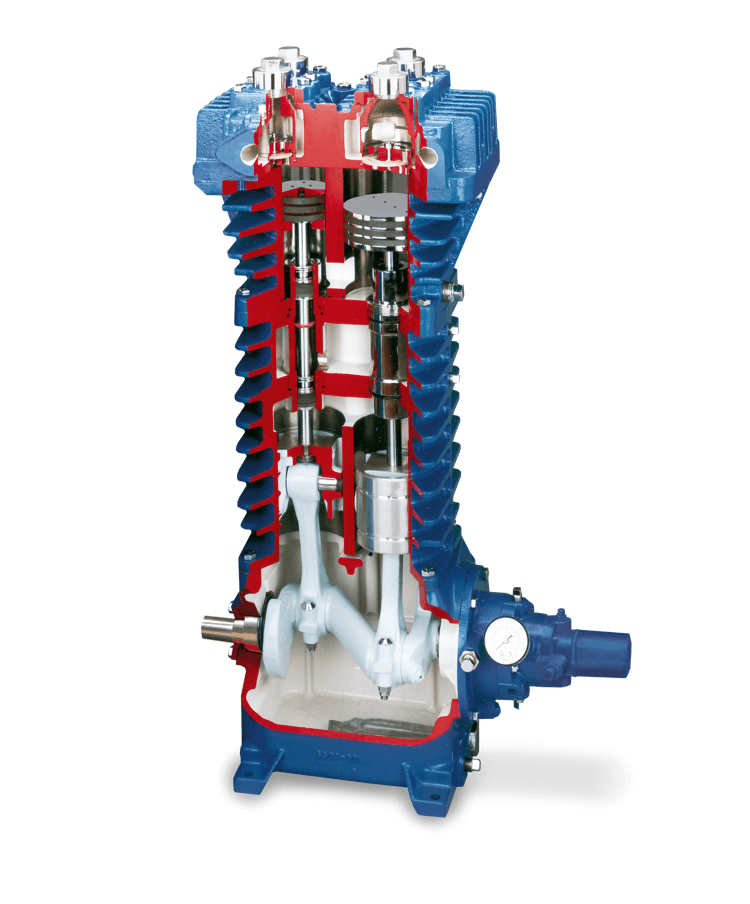

NG Series
Highly Efficient, Oil-Free Compressors Built for Natural Gas Applications
- Appropriate for use with natural gas and sour gas
- NGS Sour Gas compressors can handle up to 8% dry H2S
- Durable and robust single and two stage cylinder compressor with 20 different models
- Piston displacement up to 125 CFM (212 m3/hr)
- Working pressure up to 615 psia (42.4 bar)
- Single and double seal models available to provide superior leakage control and prevents oil contamination of the compressed gas stream
- Superior valve design
- One piece piston design
- Standard full compartment distance piece
- Wear parts are thicker, larger, and less complex than competitors
- Applications:
- Wellhead annulus gas pressure reduction
- Wellhead vapor control
- Pressure boosting
- Tank battery vapor control and recovery
- Vapor recovery
- Gas gathering
- Gas evacuation
- Gas blanketing
- Flare elimination
- Enhanced recovery
NG Compressor Series Brochure
Compressors Interactive Tool
Sliding Vane Pumps

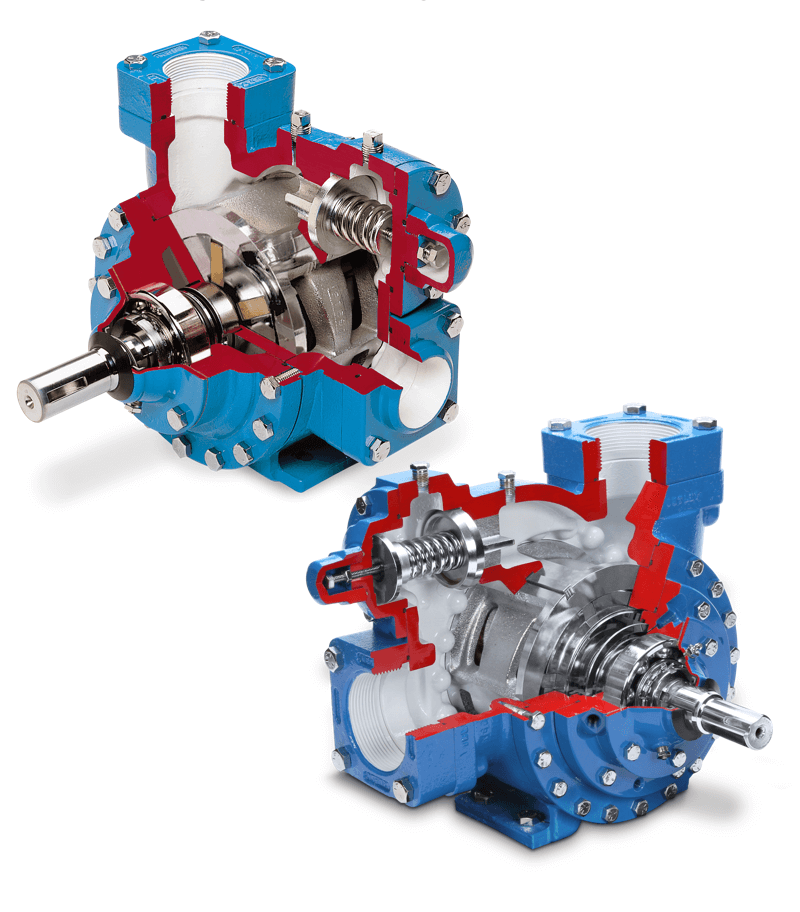

SGL Series
Ductile-Iron Pump for Liquefied Gas Transfer Applications
- Optional cartridge type, double mechanical seals in 3- to 4-in models
— Ideal for high vapor pressure applications
— Eliminates liquid leakage - Features cavitation suppression liner – mitigates the negative impacts of cavitation
- Replaceable casing, liners and end discs allow for rebuilding
- Available in 1.25-, 1.5-, 2-, 3- and 4-in models
- Flow rate range from 4 to 300 gpm (15 to 1,135 L/min)
- Max differential pressure up to 150 psi (10.3 bar)
- Self-priming, high suction capabilities enable line stripping
- Self-adjusting vanes keep performance consistency high
- Applications:
- Liquefied gas transfer
SGL Spec Sheet
SGLWD3 & SGLWD4 Spec Sheet
Sliding Vane Action Video
Sliding Vane Benefits
Sliding Vane Cavitation Liner
Sliding Vane Cavitation Liner Video
Sliding Vane Pumps

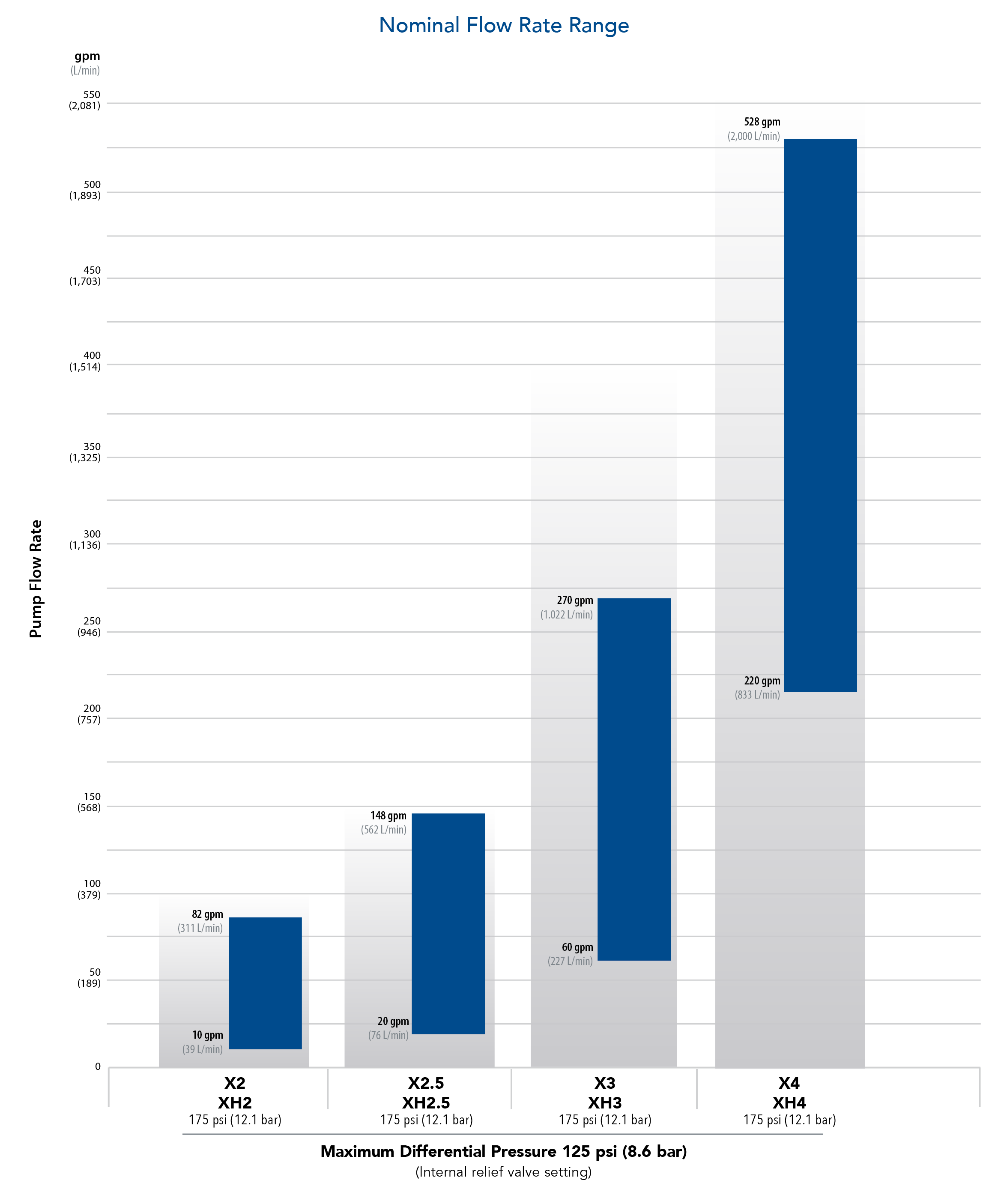

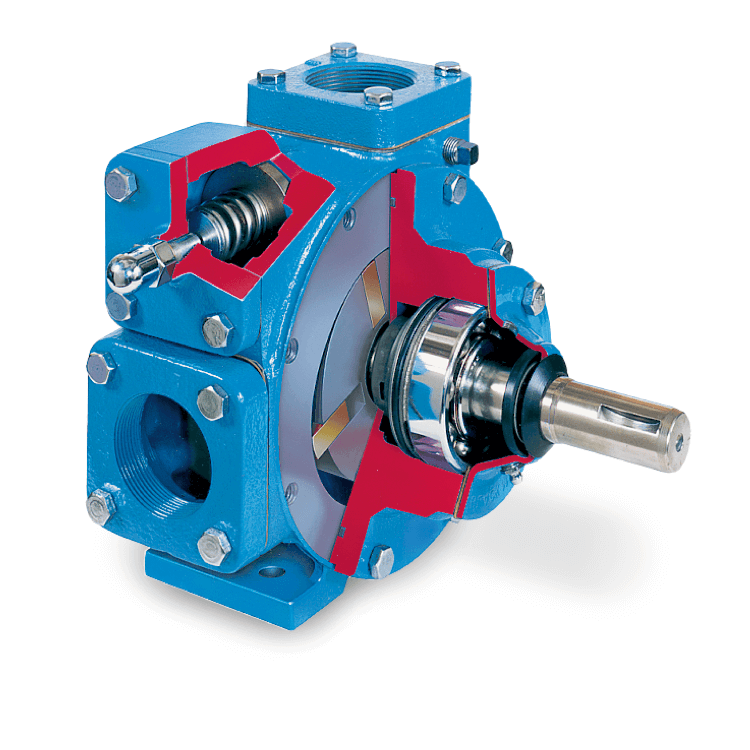

X Series
Shock-Resistant Pumps for Trouble-Free Operations
- External ball bearings isolated from the pumpage by mechanical seals
- Symmetrical bearing support assures even loading and wear for long life
- Available in 1-, 2-, 2.5-, 3- and 4-in models
- Flow rate range from 3 to 528 gpm (11 to 2,000 L/min)
- Max differential pressure to 125 psi
- Self-priming, high suction capabilities enable line stripping
- Self-adjusting vanes keep performance consistency high
- Applications:
- Blending
- Loading and unloading
Transfer of a wide range of non-corrosive, non-abrasive industrial liquids and petroleum products
X Series Product Brochure
Sliding Vane Action Video
Sliding Vane Benefits
Sliding Vane Pumps

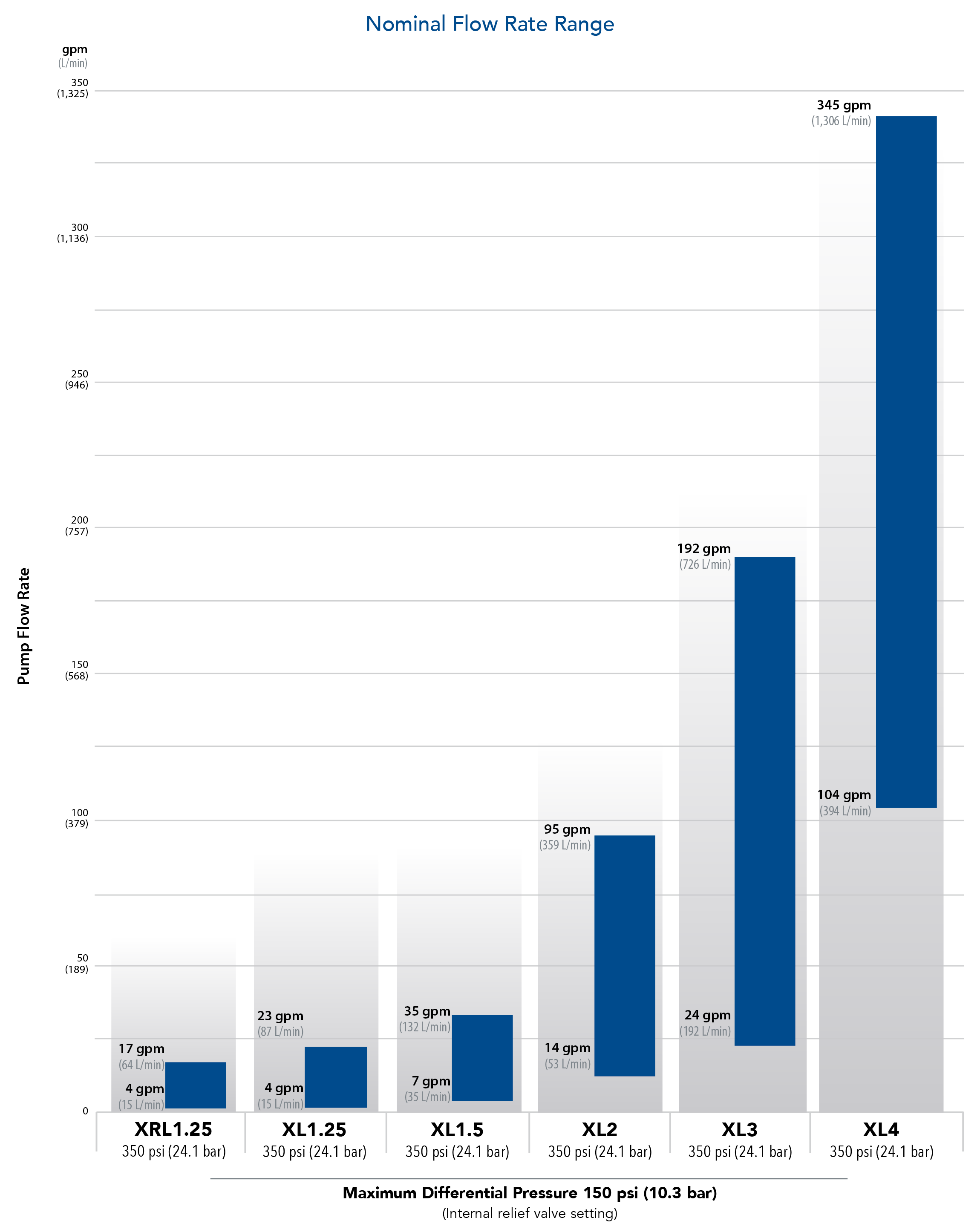

XL Series
Ductile-Iron Pumps for Use in Processing, Filling and Transfer of Fluids
- Built to withstand sudden thermal shock and stresses
- Wide range of elastomer, mechanical seal, and vane options
- Replaceable casing, liners and end discs allow for rebuilding
- Available in 1.25-, 1.5-, 2-, 3- and 4-in models
- Flow rate range from 4 to 345 gpm (15 to 1,306 L/min)
- Max differential pressure to 150 psi (10.3 bar)
- Self-priming, high suction capabilities enable line stripping
- Self-adjusting vanes keep performance consistency high
- Applications:
- Processing
- Filling
- Transfer
Refineries, lube oil plants, and general industry:
XL Series Brochure
Sliding Vane Action Video
Sliding Vane Benefits
Centrifugal Pumps

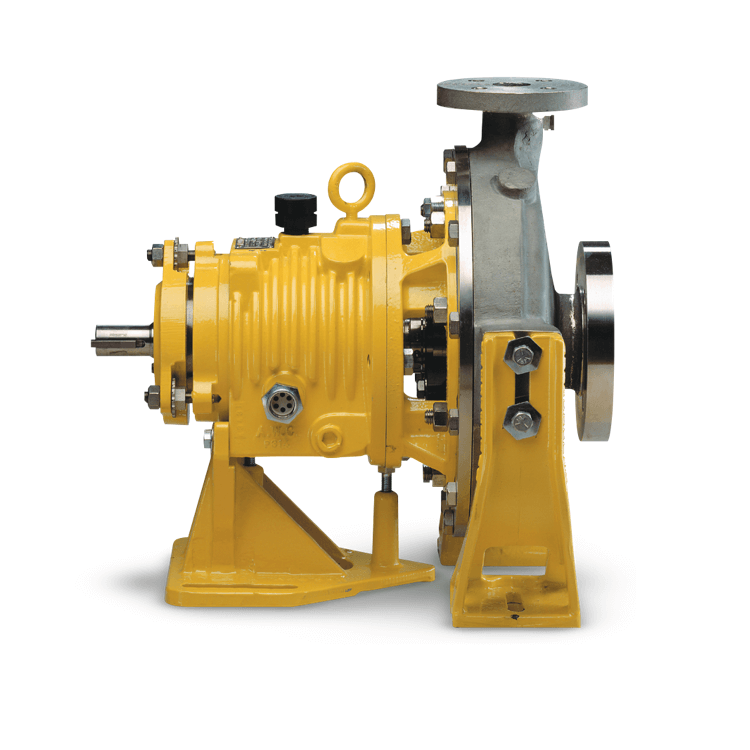

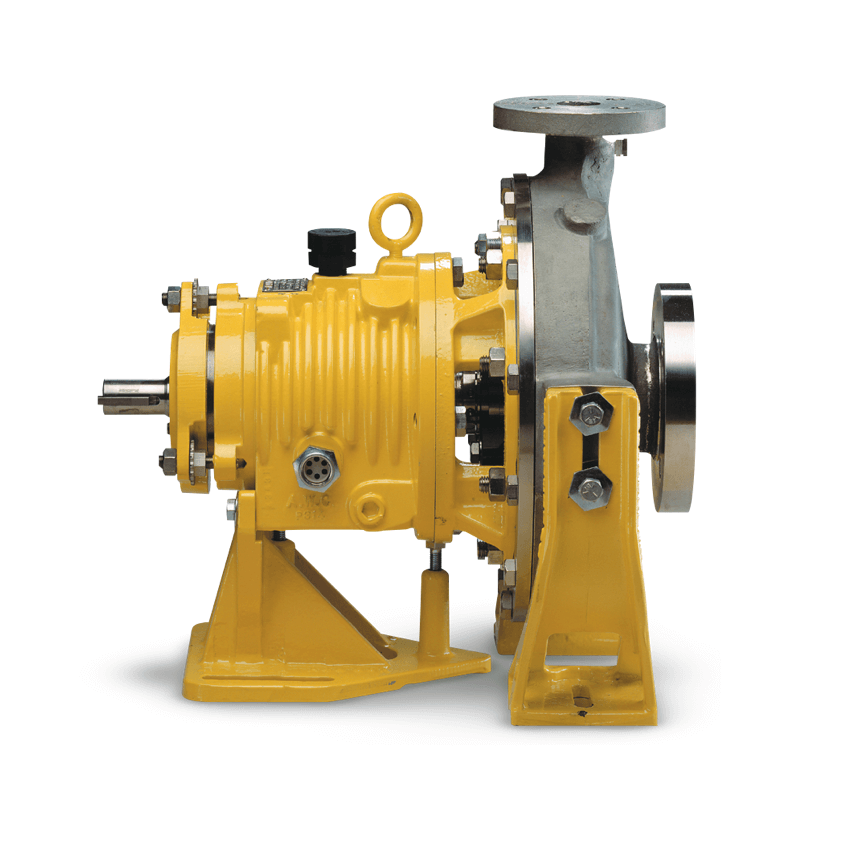

Blackmer Centrifugal Pumps
Heavy-Duty Centrifugal Pumps for Severe Process Applications
- High-strength, low-maintenance line of centrifugal pumps
- Designed specifically for the toughest, most extreme environments
- Maximum BHP: 300 HP (149 kW)
- Seal and bearing design eliminates up to 90% of common pump failures
- Heavy-duty, solid, low deflection shaft prevents common vibration damage and greater stability at the seal area to improve seal life
- Heavy-duty bearings offer greater load capacity and extend bearing life
- Unmatched performance warranty on power end components and mechanical seal
- Applications:
- Chemicals
- Mining de-watering
- Water/wastewater
- Liquid terminals
Severe process applications
Centrifugal Pumps Brochure
Centrifugal Pumps Interactive Tool
Sliding Vane Pumps

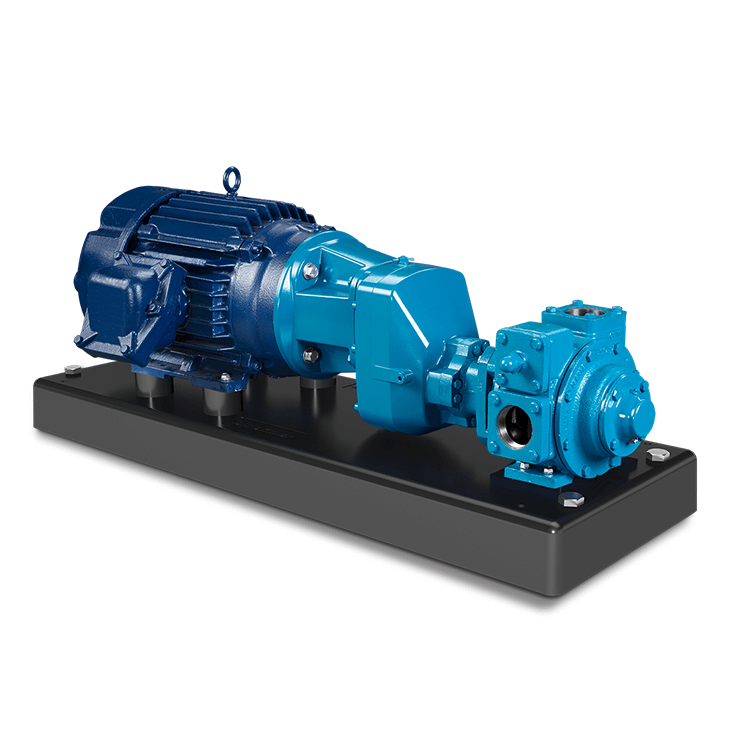

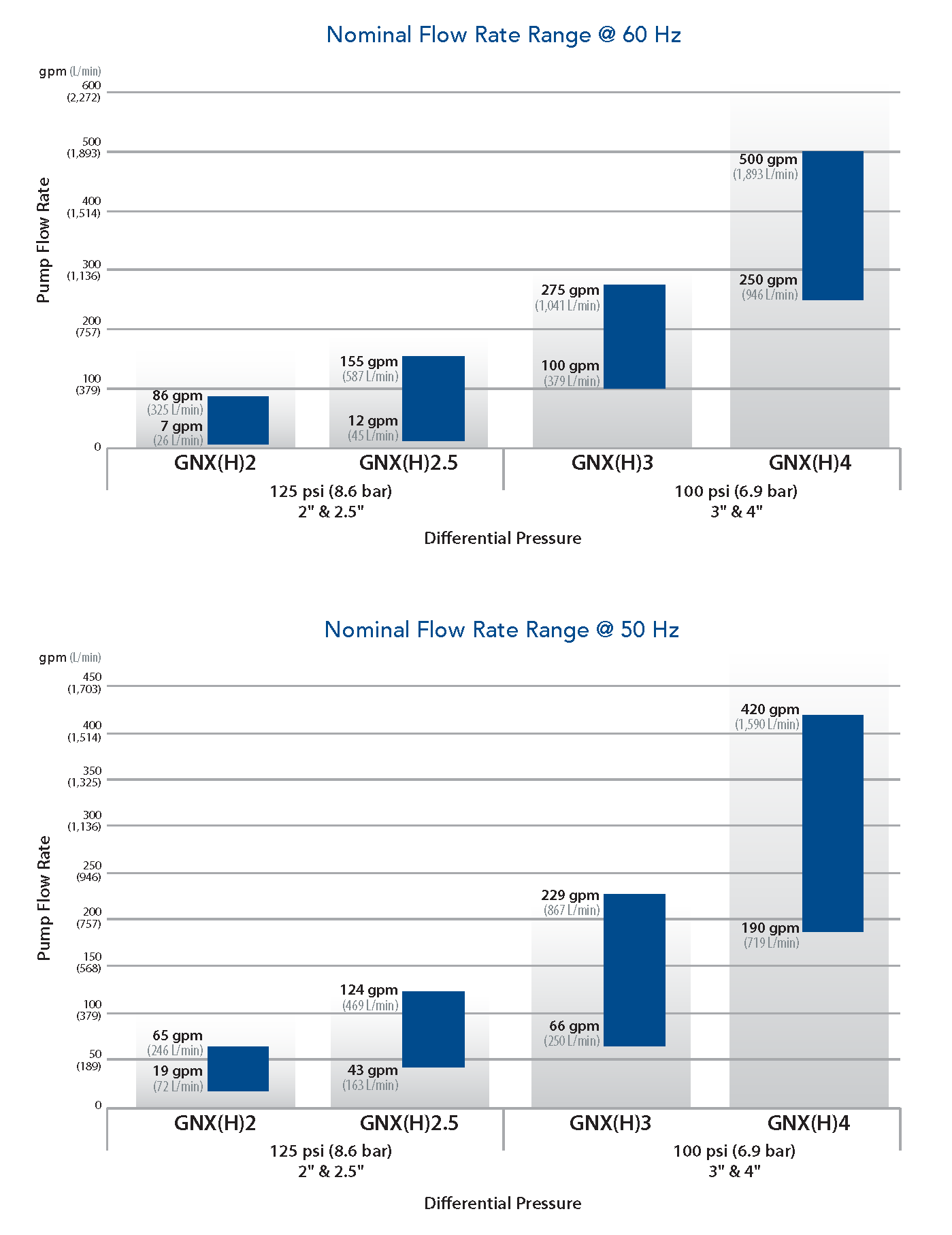

GNX Series
Alignment-Free, Reduced-Speed Pump for Refined Fuels
- True turnkey pump assembly is a single structural element – pump, gearbox, motor, baseplate
- Alignment free design reduced downtime and simplifies maintenance
- Available in 2-, 2.5-, 3-, 4-in models
- Flow rate range from 7 to 500 gpm (25 to 1,893 L/min)
- Max differential pressure up to 125 psi (8.6 bar)
- Between bearing design
- Self-priming, high suction capabilities enable line stripping
- Self-adjusting vanes keep performance consistency high
- Applications:
- Batch blending
- Pressure boosting stations
- Priming systems
- Aviation fuel skids
- Portable transfer skids
GNX Brochure
Interactive Tool
Sliding Vane Benefits
Sliding Vane Pumps

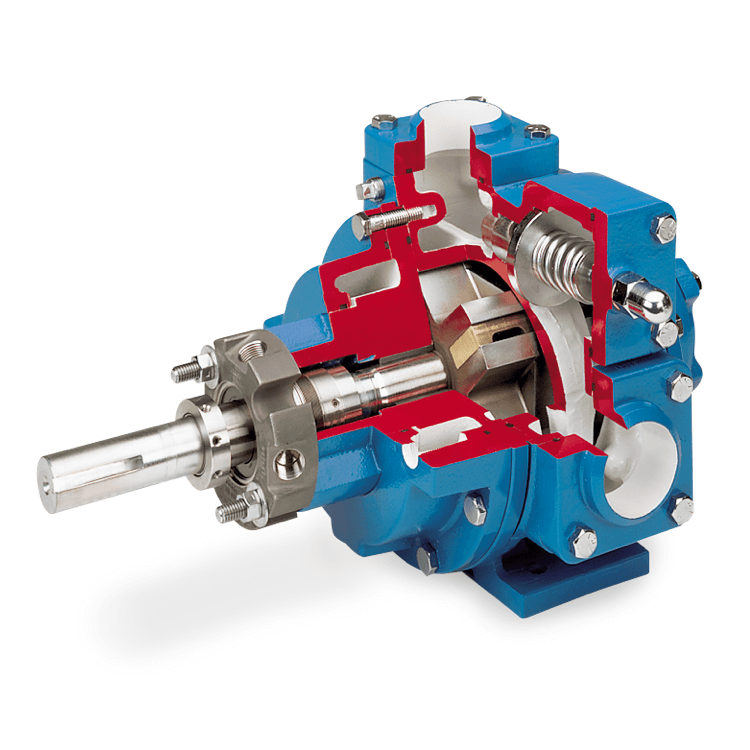

NP Series
Sliding Vane Pumps with Self-Lubricating Internal Sleeve Bearings
- Highly customizable pump with many options and configurations:
— Different options available for rotors, jackets, seals, flanges - Suited for high temperature, high pressure, high viscosity and shaft sealing requirements with special self-lubricating internal sleeve bearing
- Available in 1.5-, 2-, 2.5-, 3- and 4-in models

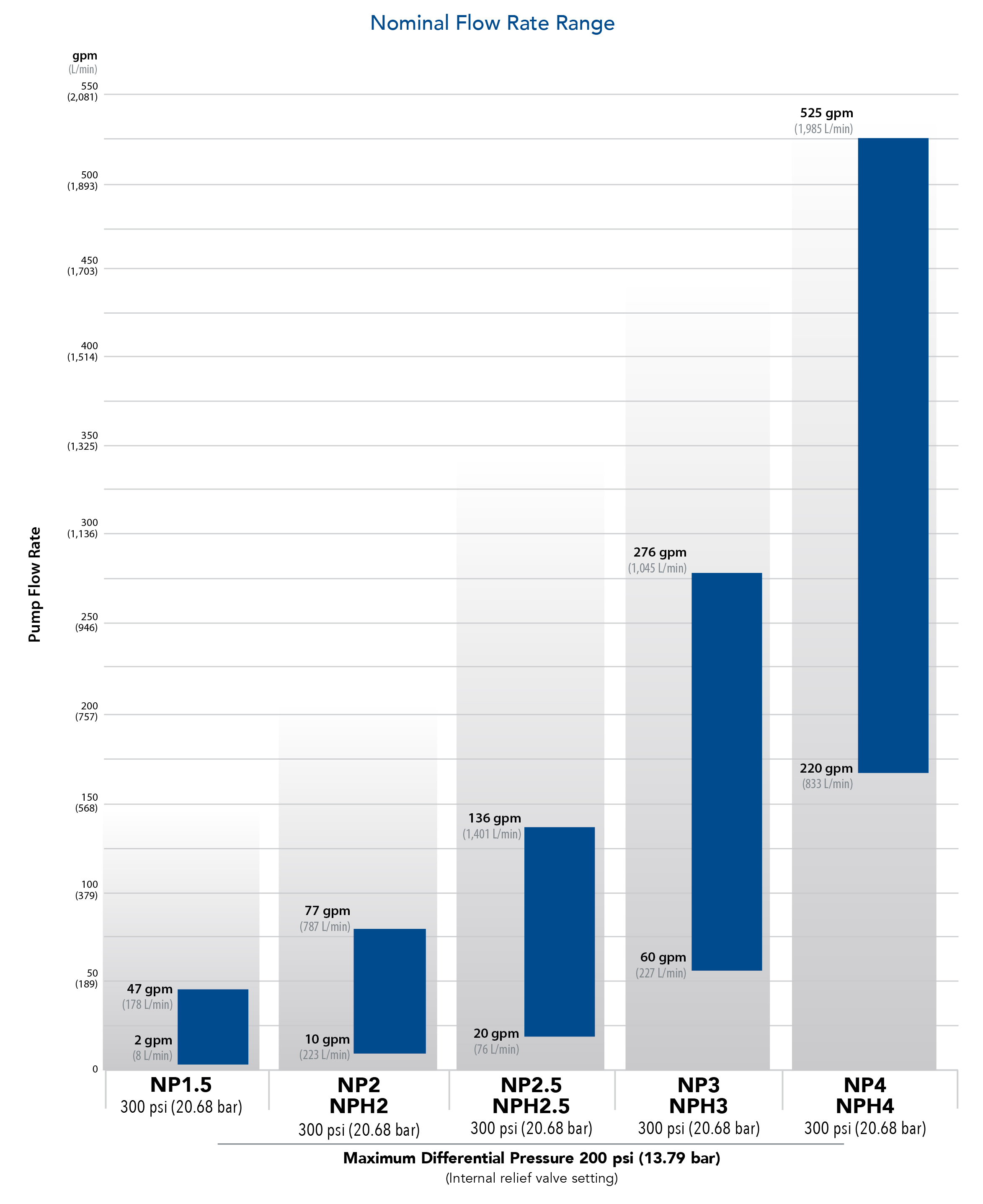

- Flow rate range from 5 to 525 gpm (19 to 1,985 L/min)
- Max differential pressure up to 200 psi (13.8 bar) with open rotor option
- Self-priming, high suction capabilities enable line stripping
- Self-adjusting vanes keep performance consistency high
- Applications:
Fluid processing and transfer of viscous or shear sensitive fluids
Sliding Vane Action Video
Sliding Vane Benefits
NP Series Brochure
Sliding Vane Pumps

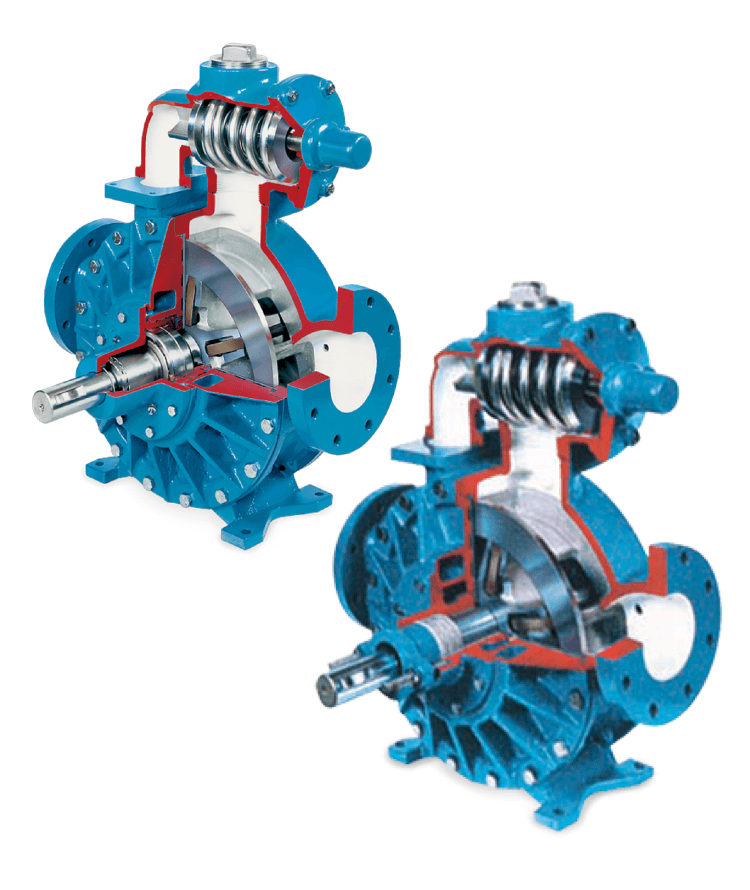

ML Series
Heavy Duty 4-in Vane Pumps for Continuous High Level Performance

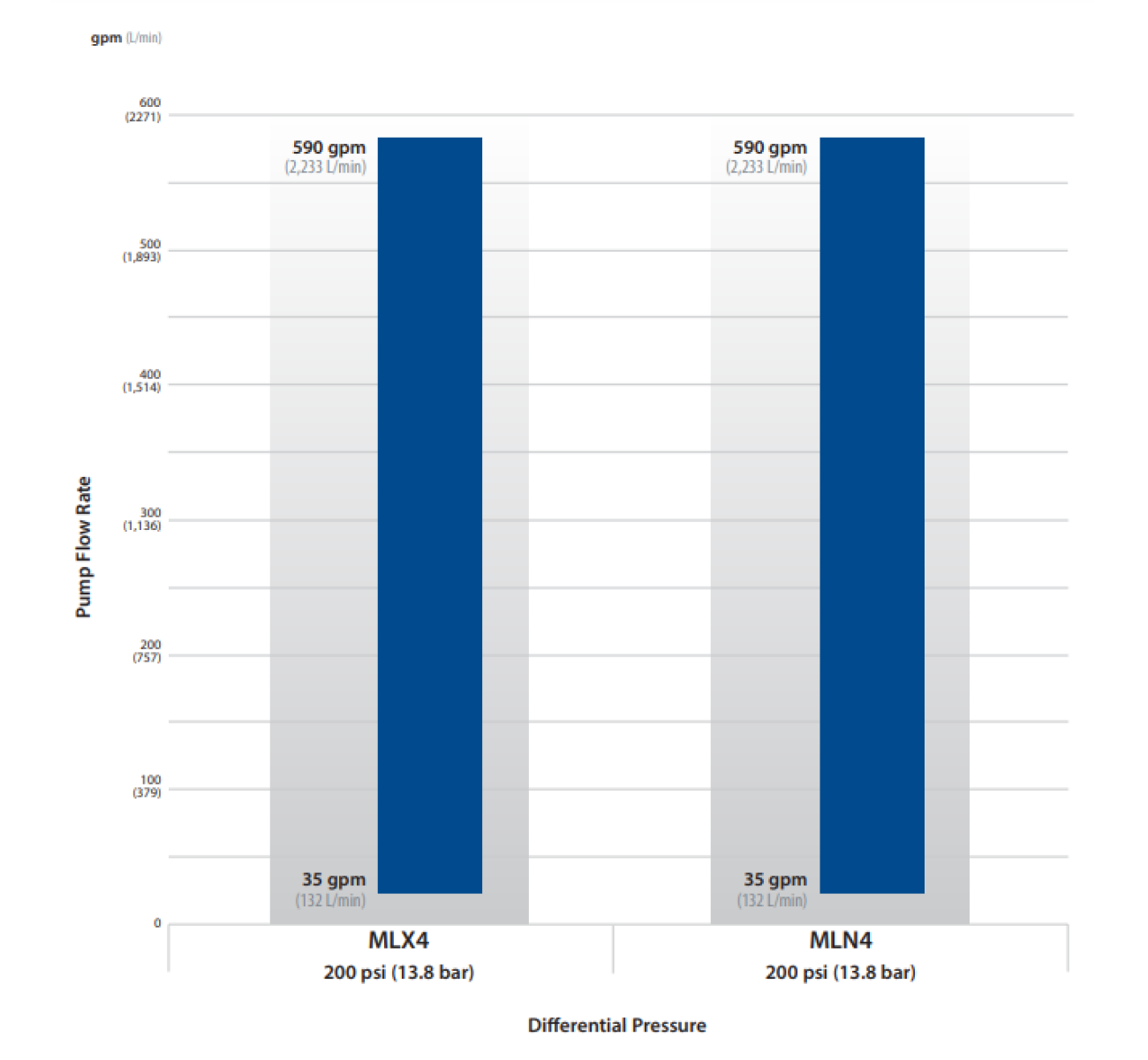

- Flow rate range from 35 to 590 gpm (132 to 2,233 L/min)
- Max differential pressure to 200 psi (13.8 bar)
- Self-priming, high suction capabilities enable line stripping
- Self-adjusting vanes keep performance consistency high
MLX Series
- Features internal mechanical seals with external ball bearings
- Applications:
Designed for all types of liquids from light non-lubricating to viscous abrasive slurries and waste oils
MLN Series
- Features internal self-lubricating carbon sleeve bearings and PTFE-impregnated shaft packing
- Applications:
Designed for highly viscous fluids oils, asphalts, and adhesives
ML Series Brochure
Sliding Vane Action Video
Sliding Vane Benefits
Sliding Vane Pumps

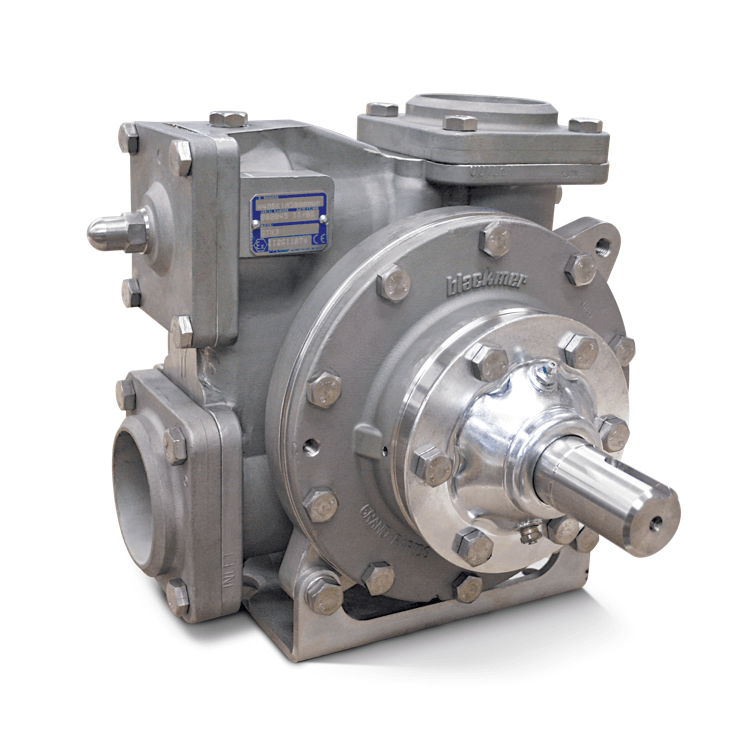

STX Series
Stainless Steel Transfer Pump for DEF
- Fast-fluid transfer pump that meets or exceeds all DEF aqueous urea solutions (AUS32) specifications
- Available in 2-, and 3-in models

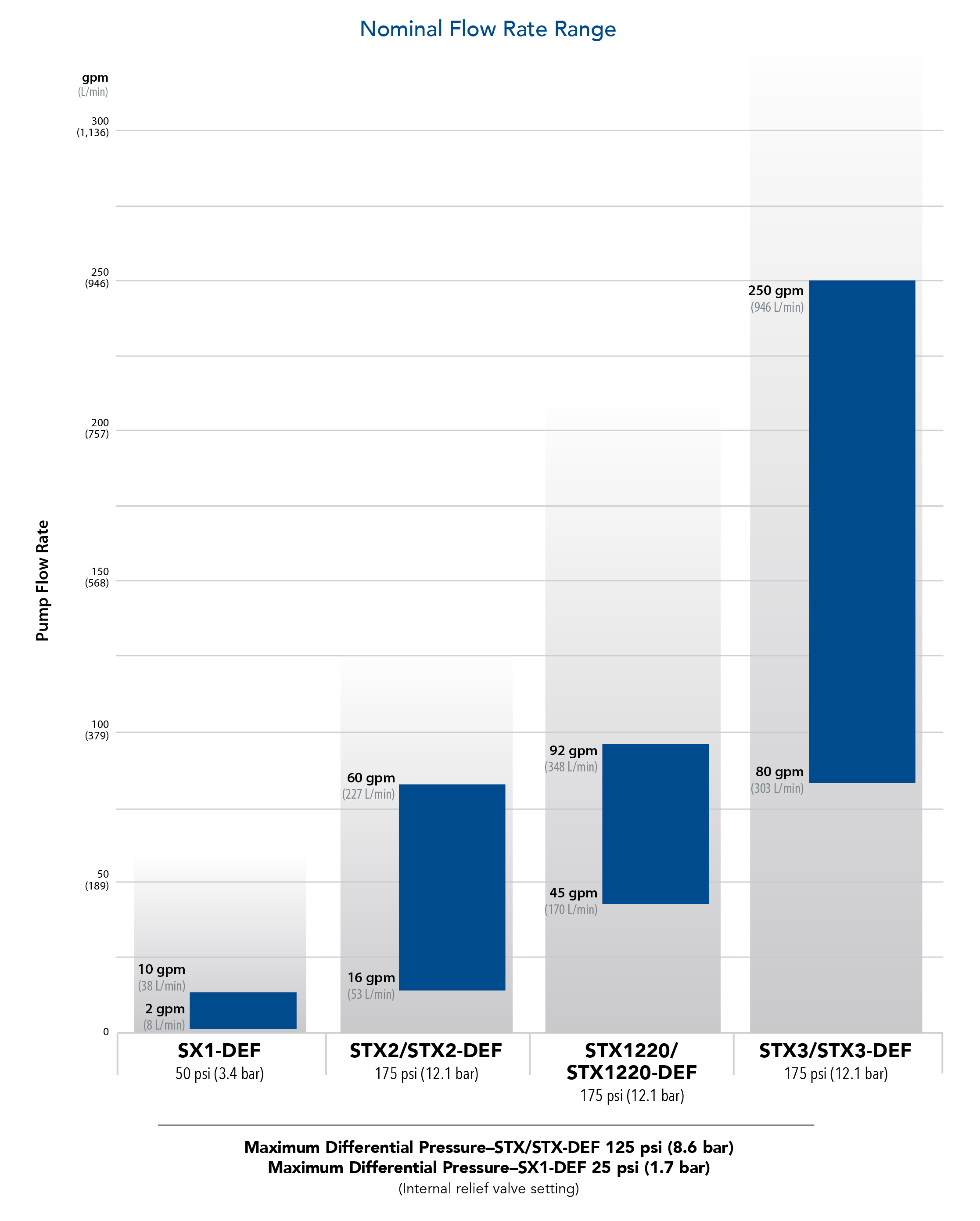

- Flow rate range from 16 to 250 gpm (61 to 946 L/min)
- Max differential pressure to 125 psi (8.6 bar)
- Self-priming, high suction capabilities enable line stripping
- Self-adjusting vanes keep performance consistency high
- Constructed of materials resistant to DEF corrosiveness
- Applications:
- DEF transport
- Railcar loading and unloading
- DEF tote filling
STX Brochure
Sliding Vane Action Video
Sliding Vane Benefits
Sliding Vane Pumps

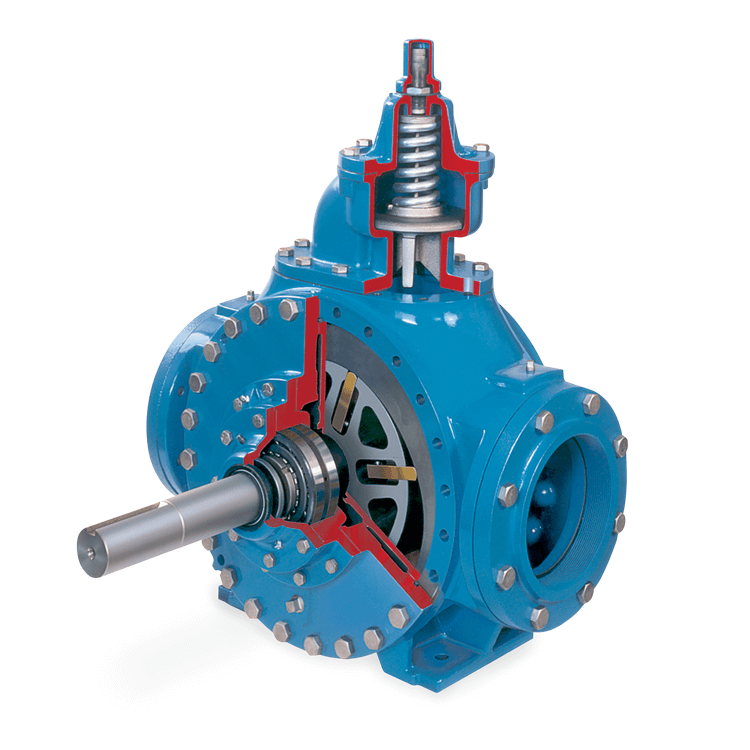

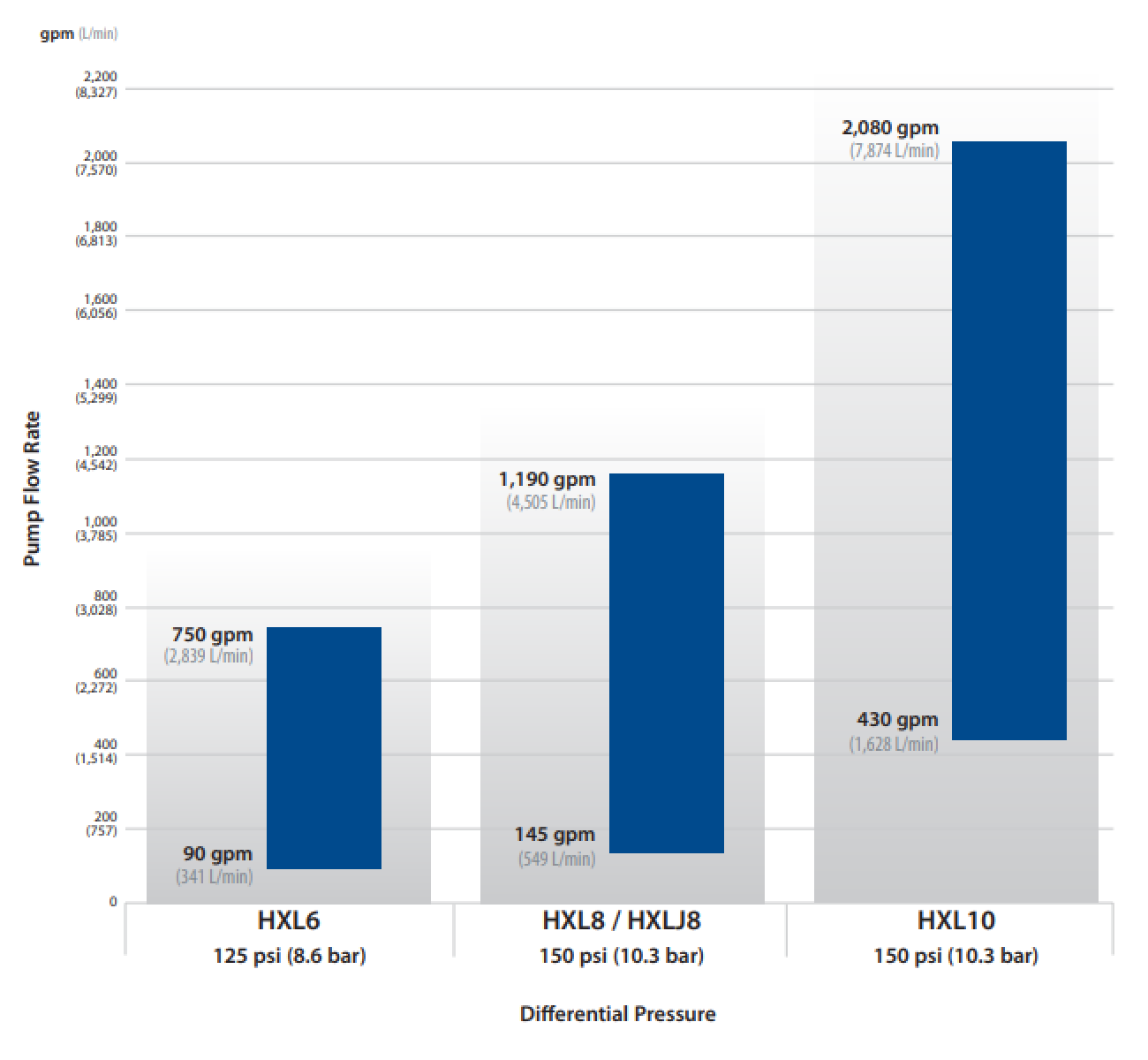

HXL Series
High-Volume, Sustained Performance, Shock-Resistant Pumps
- High capacity ductile iron pumps designed to withstand thermal shock and stresses
- Designed for transfer of non-corrosive liquids at all viscosity levels
- Fitted with replaceable casing, liners, and end discs for easy rebuilding of pump
- Available in 6-, 8- and 10-in models
- Flow rate range from 150 to 2,080 gpm (577 to 7,874 L/min)
- Max differential pressure up to 150 psi (10.3 bar)
- Self-priming, high suction capabilities enable line stripping
- Self-adjusting vanes keep performance consistency high
- Applications:
- Refineries
- Terminal operations
- Barge and ship loading and off-loading
HXL Brochure
Sliding Vane Action Video
Sliding Vane Benefits
Sliding Vane Pumps

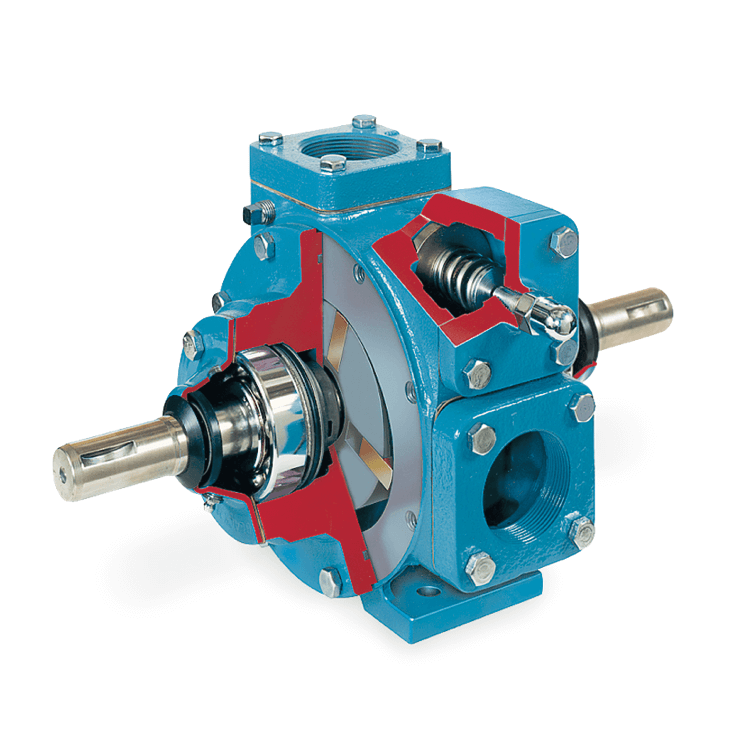

TX Series
Refined Fuel Truck Pump Built for Fast & Quiet Operation
- Designed for fast and quiet operation, compatible with all biodiesel and ethanol bends
- Available in 2-, 2.5-, and 3-in models
- Double-ended drive shaft for clockwise or counterclockwise rotation

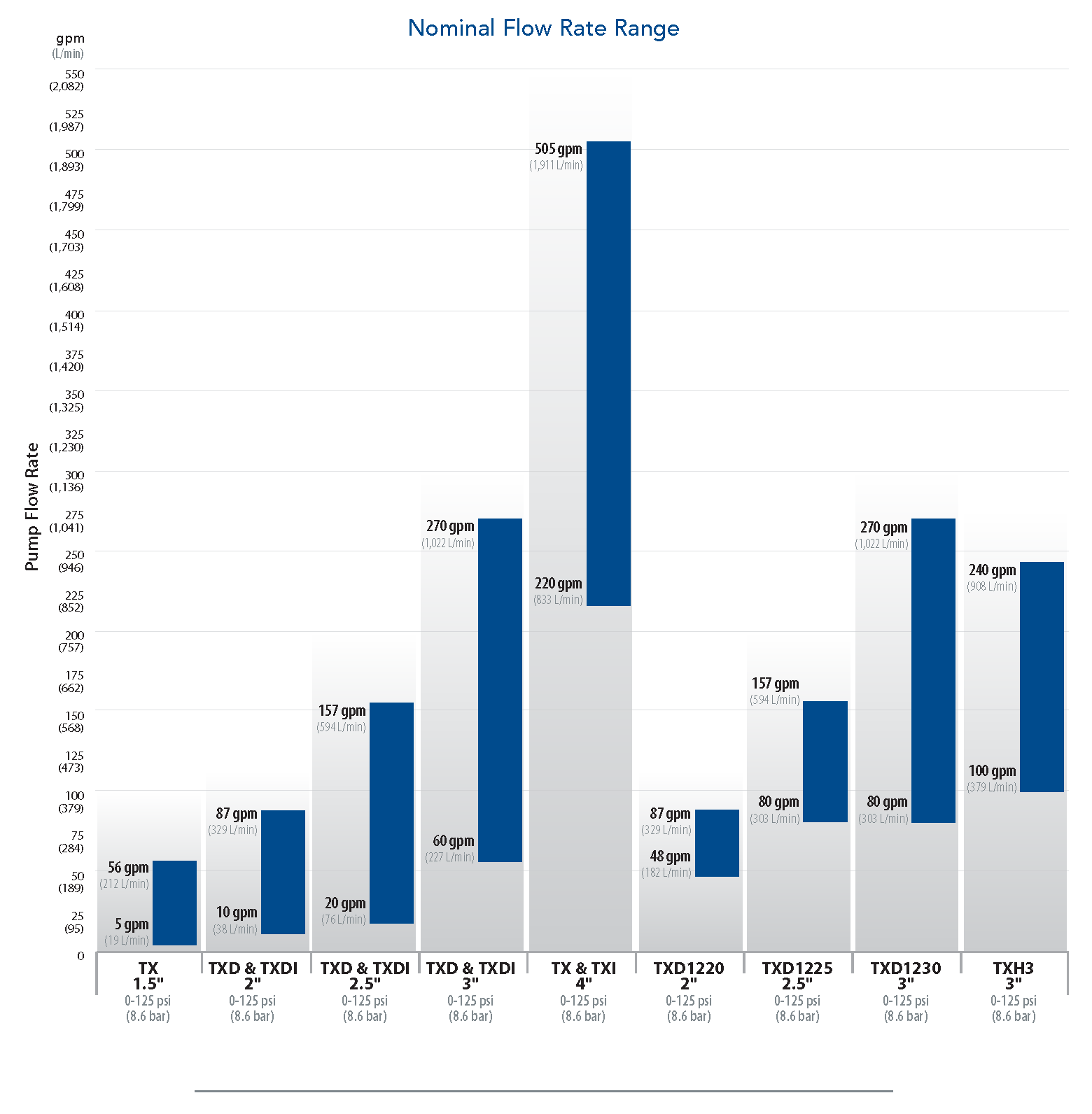

- Flow Rate Range from 87 to 270 gpm (329 to 1,022 L/min)
- Max differential pressure to 125 psi (8.6 bar)
- Max differential pressure up to 150 psi (10.3 bar)
- Self-priming, high suction capabilities enable line stripping
- Self-adjusting vanes keep performance consistency high
- Industry leading five year product warranty and 2 year performance assurance guarantee for TXD models
- Applications:
- Transport delivery
- Fleet refueling
- Bulk transfer
Refined fuels and biodiesels
TX Brochure
Sliding Vane Action Video
Sliding Vane Benefits
Sliding Vane Pumps

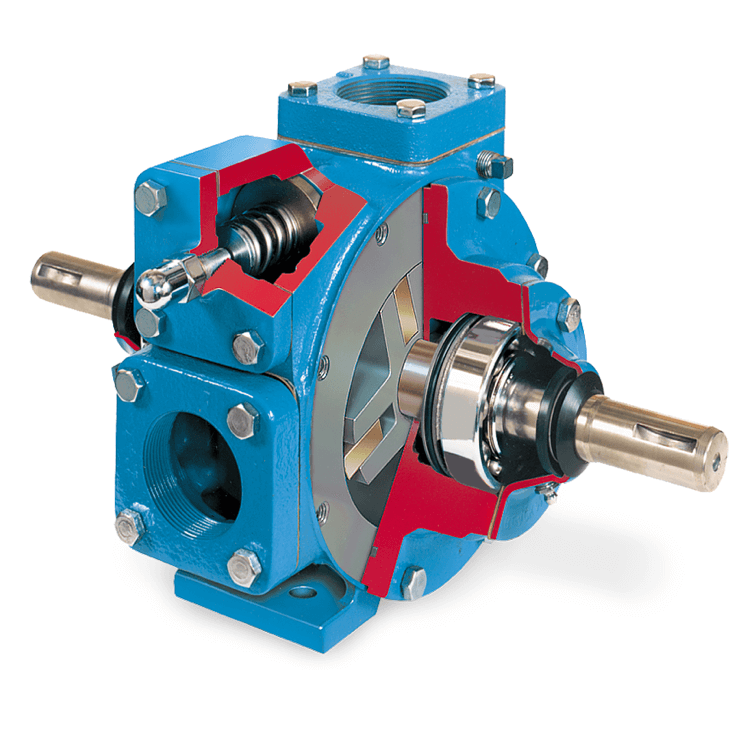

TXV Model
High-Temperature Rotary Vane Pumps for Viscous Fluids
- Open-rotor design enables high volume, low speed transfer of clean viscous fluids
- Available in 2.5-, and 3-in models
- Flow rate range from 80 to 276 gpm (302 to 1,043 L/min)
- Max differential pressure to 125 psi (8.6 bar)
- Self-priming, high suction capabilities enable line stripping
- Self-adjusting vanes keep performance consistency high
- Ideal for handling viscous or shear sensitive fluids
- Applications:
- Transport delivery
- Fleet refueling
- Bulk transfer
Viscous Fluids
TXV Spec Sheet
Sliding Vane Action Video
Sliding Vane Benefits
Sliding Vane Pumps

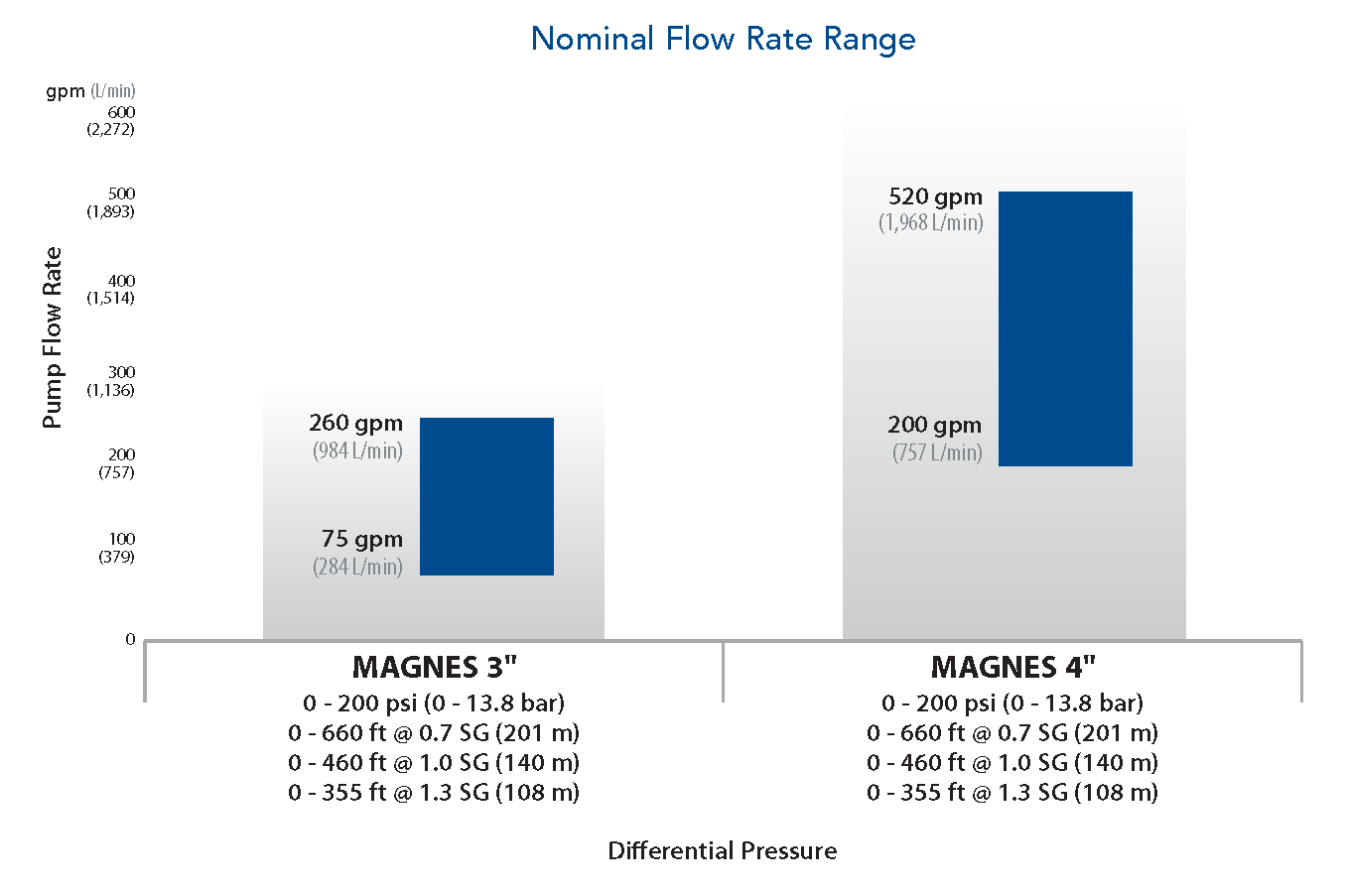

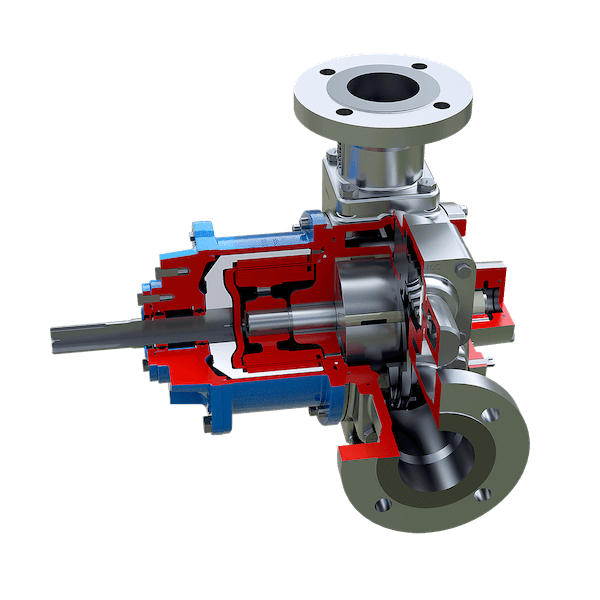

Magnes Series
Leak-Free, Magnetic Drive Pump Featuring Positive Displacement Sliding Vane Technology
- Available in 3- & 4-inch sizes
- Available in cast iron or stainless steel construction
- Magnetic drive pump design is inherently leak-free
- Non-metallic, proprietary composite containment shell that provides the coupling strength of a thin wall metallic shell and the reliability of an eddy-current-free design
- Low speed operation – pumps operate at 10%-20% speed range of comparable options, while achieving the same flow and pressure outputs as other pumping technologies
- Solids handling ability – with large flow path design, and low internal flow velocity, particulates up to 1/8 inch (3 mm) can pass through without issue
- Designed for entrained vapor handling, low to zero NPSH required
- True self-priming pump, does not require filling before start-up
- Features suction lift capabilities that meet or exceed 25 ft (7.6 m) wet vacuum and 16 ft (4.9 m) dry vacuum
- Full curve performance across the entire system range, without sensitivity to a BEP curve
- Applications:
- Loading & Unloading
- Pressure Boosting Stations
- Batch Blending
- Forwarding
- Processing
- Railcar Transfer
- Tank to Truck Transfer
- Transloading
MAGNES Brochure
MAGNES Whitepaper
MAGNES Solutions for Pumping Pain Points
For Indefinite Dry Run
For Solids Handling
For Cavitation & Vapor Mixture Handling
For Full Curve & Systems Performance
Internal Gear Pumps
G Series & EV6900
Heavy Duty Bracket Internal Gear Pumps in Cast Iron
Blackmer G Series and EV6900 series pumps can be found in applications such as tank battery circulation, well maintenance, hot oil service, and cleaning. Treater trucks are equipped with pumps designed to pump water-based well-treating chemicals which are typically composed of fresh or produced water and a blend of paraffin, solvents, or other similar chemicals into storage tanks or directly into the backside of tubing at the well site. Treater trucks can service 15-40 wells per day, unloading approximately 200 gallons in a single stop. In hot oil service, pumps are used to clear blockages in piping, casings, or tanks, and for heating water and other fracturing fluids as part of product recovery processes.
- Applications:
- Tank battery circulation
- Treater trucks/well head cleaning and enrichment
Competitor Pump Interchangeability
Direct
Replacement Part Interchangeability
Seal Chamber with Universal Design and Heavy-Duty Oversized Bearing Housing
Jacketed Pump Options for Process Integrity
G Series Brochure
EV6900 Brochure
G Series Interactive Tool
Internal Gear Pumps
G Series
G Series Heavy Duty Internal Gear Bracket Pumps
Blackmer Internal Gear Pumps are designed to deliver pulsation free flow of fluids up to 165,000 cSt at pressures up to 200 psi. Because of this design, they are well suited to handle a variety of fluids and pumping conditions without adjustment.
- Applications:
- Heavy Fuel Oil
- Blending
Competitor Pump Interchangeability
Direct
Replacement Part Interchangeability
Seal Chamber with Universal Design and Heavy-Duty Oversized Bearing Housing
Jacketed Pump Options for Process Integrity
G Series Brochure
G Series Interactive Tool
