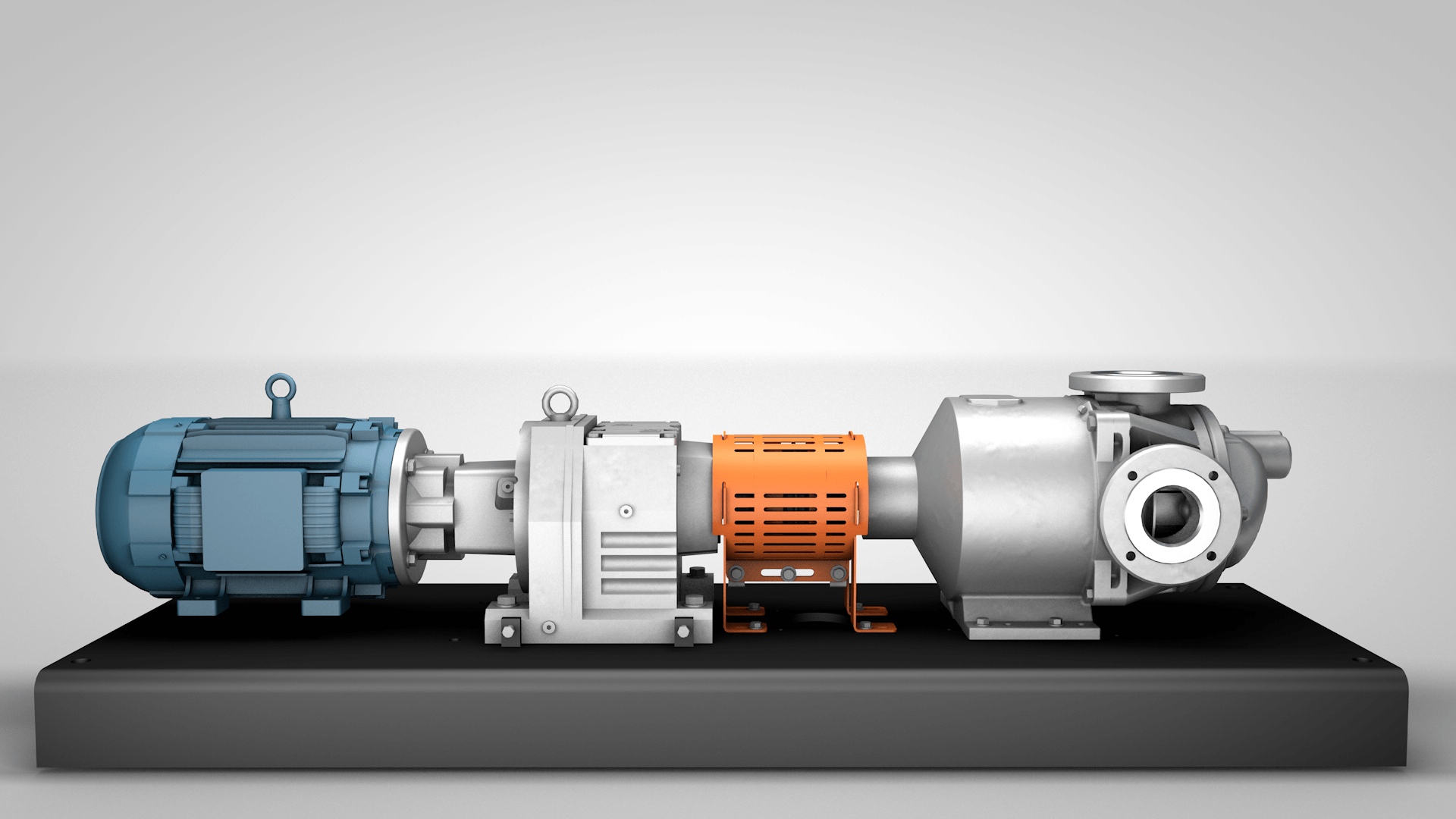

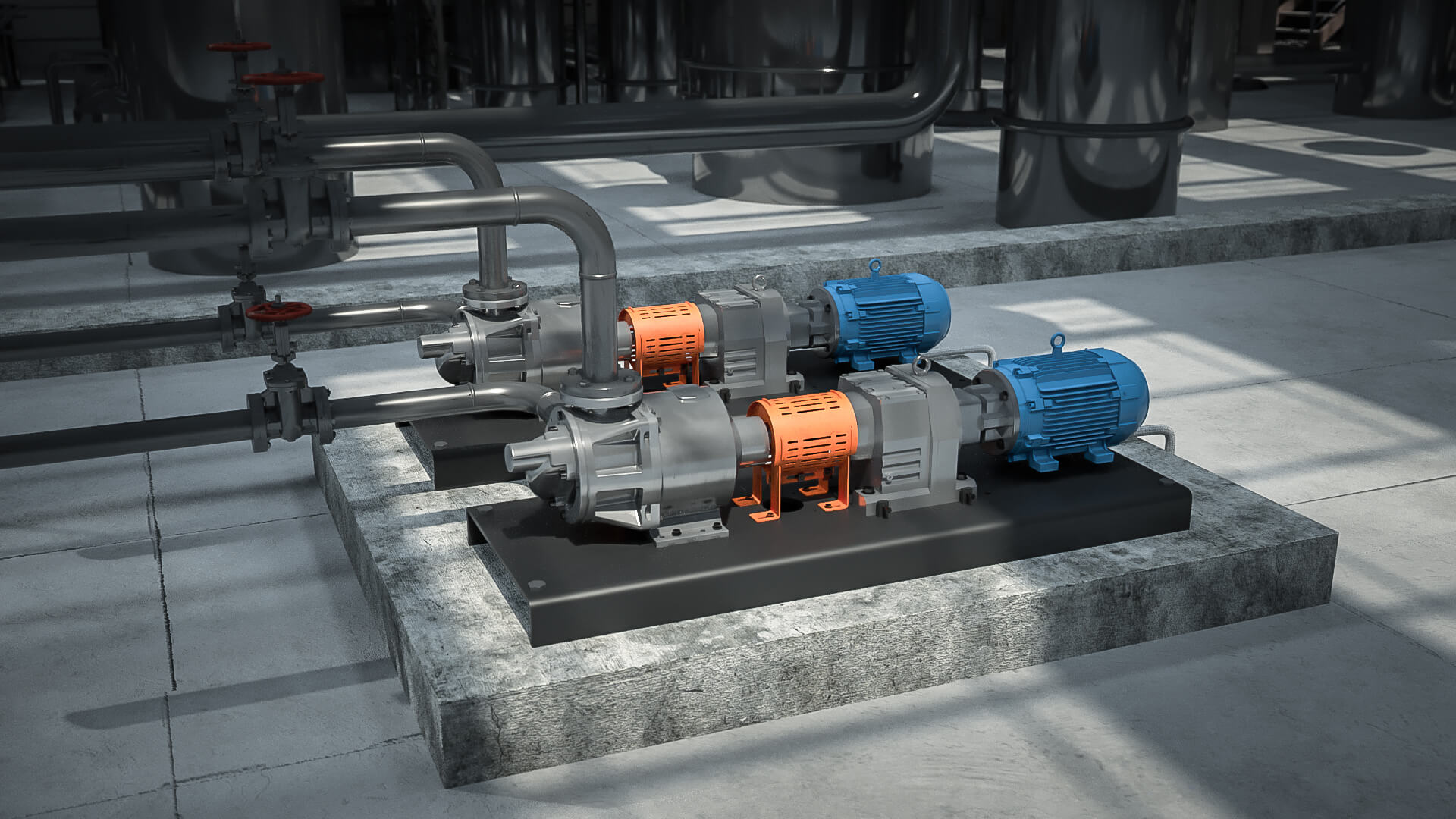

Motor
Baseplate
Gear Box
Coupling Guard
Pump
Full Range of C-Face Motors
- Power Range: ¾ HP to 75 HP (0.56 kW to 56 kW)
- Power Supply: 208-230/380/460/575 Volt, 1-Phase or 3-Phase, 50 Hz or 60 Hz
- Inverter duty (VFD rated) or non-inverter duty, 10:1 or 20:1 turn down
- Enclosure Type: TEFC or explosion proof (Class I, Div 1)
Baseplate
- Rigid C-Channel for reduced vibrations
- Various lengths and widths to accommodate all pump sizes and motor options
- Raised mounting points for accessible height adjustment
Gear Box
- Gear ratios from 1.39:1 to 182:1
- Helical reducer design
- Heavy-duty foot mounted and c-face adapter for close-coupled motor mounting

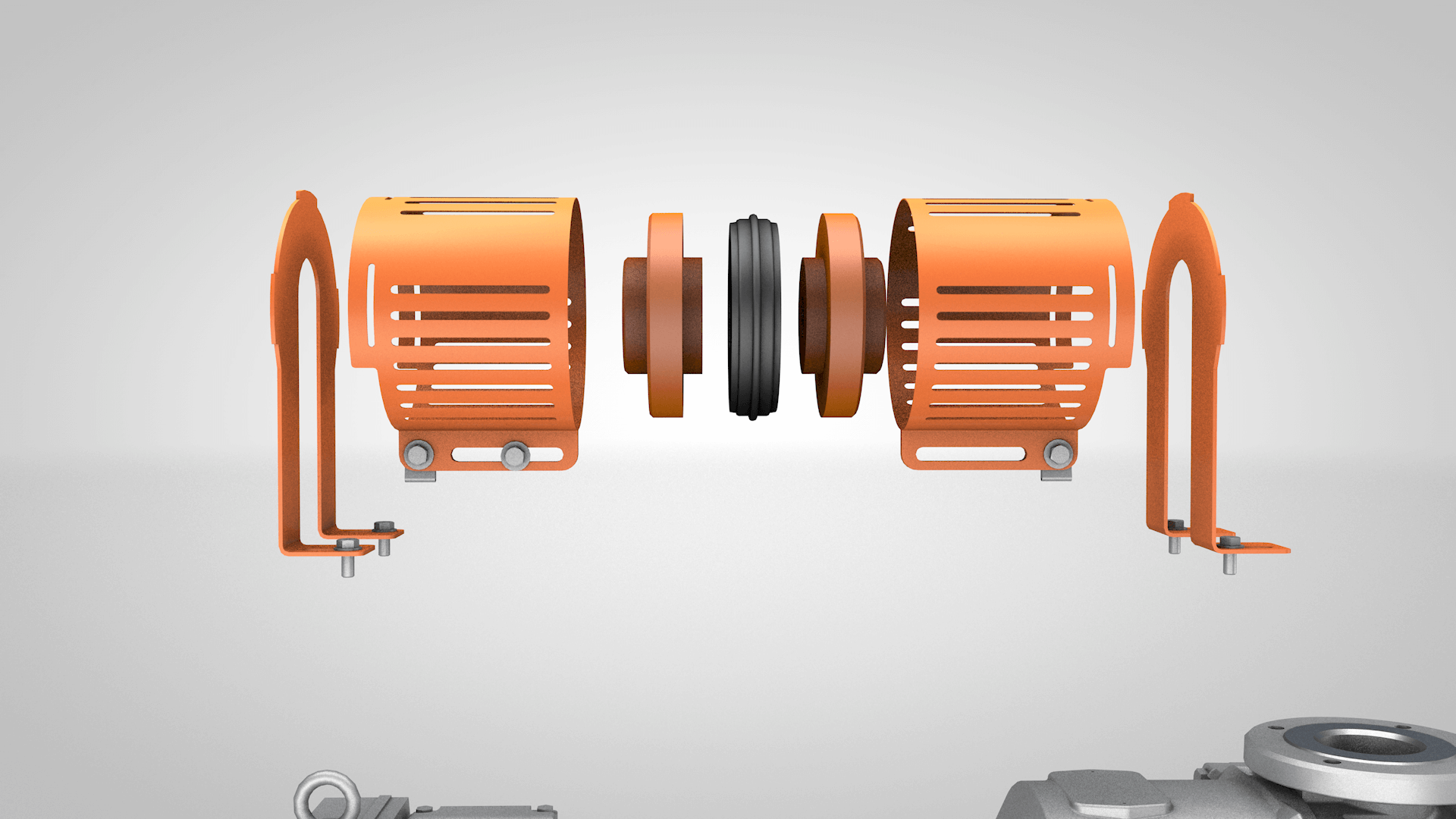

Coupling Guard
- Adjustable coupling guard
- Iron coupling hubs with flexible neoprene insert
Mag Drive Technology
Cooling Path
Fluid Path
Between the Bearing Support
Pressure Relief Valve

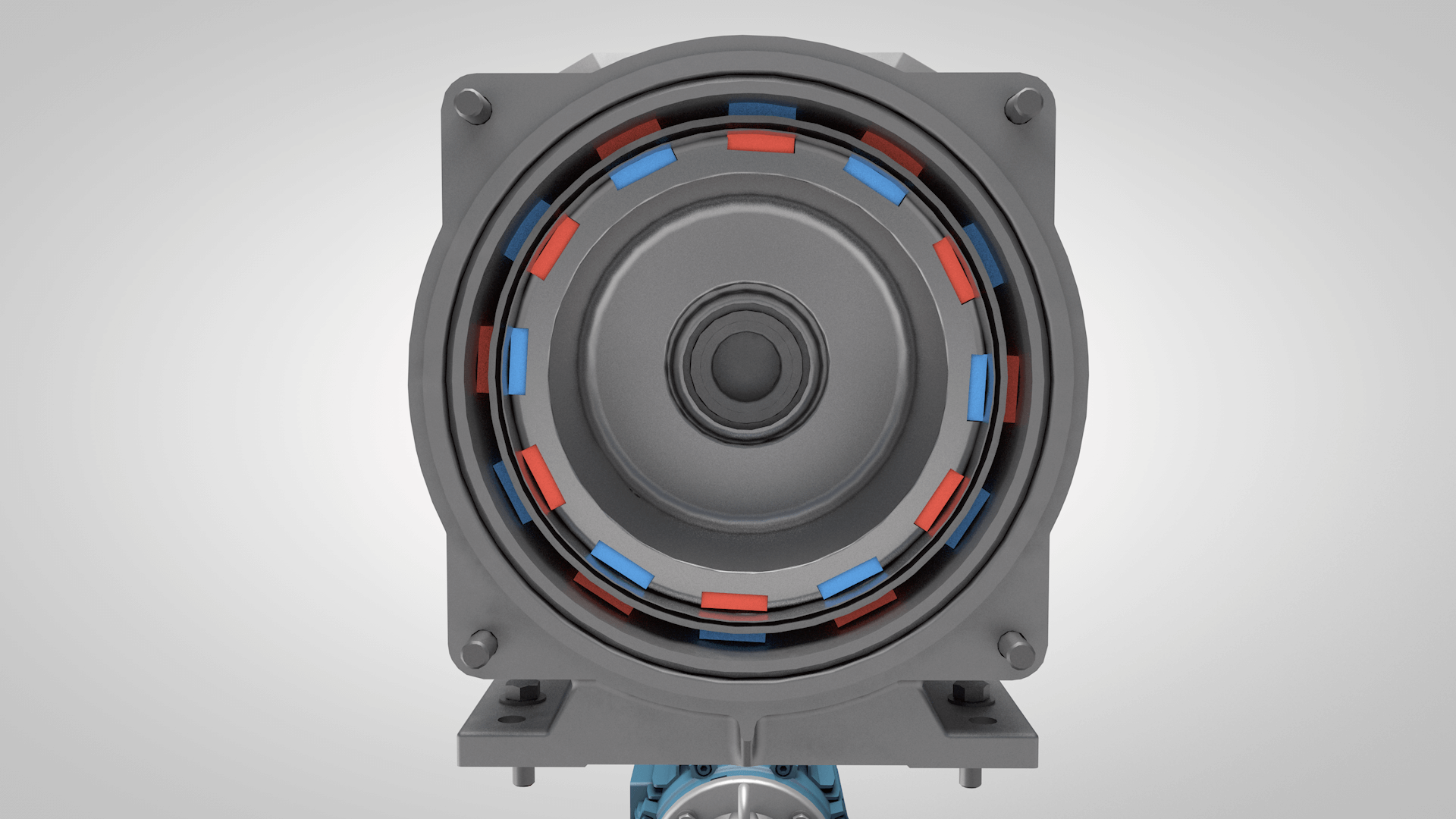

Mag Drive Technology
- Seal-less design eliminates the need for a mechanical seal
- Reduced maintenance costs and down time
- Eliminate environmental remediation and reporting expense and increase plant safety
- High strength, high torque magnetic coupling

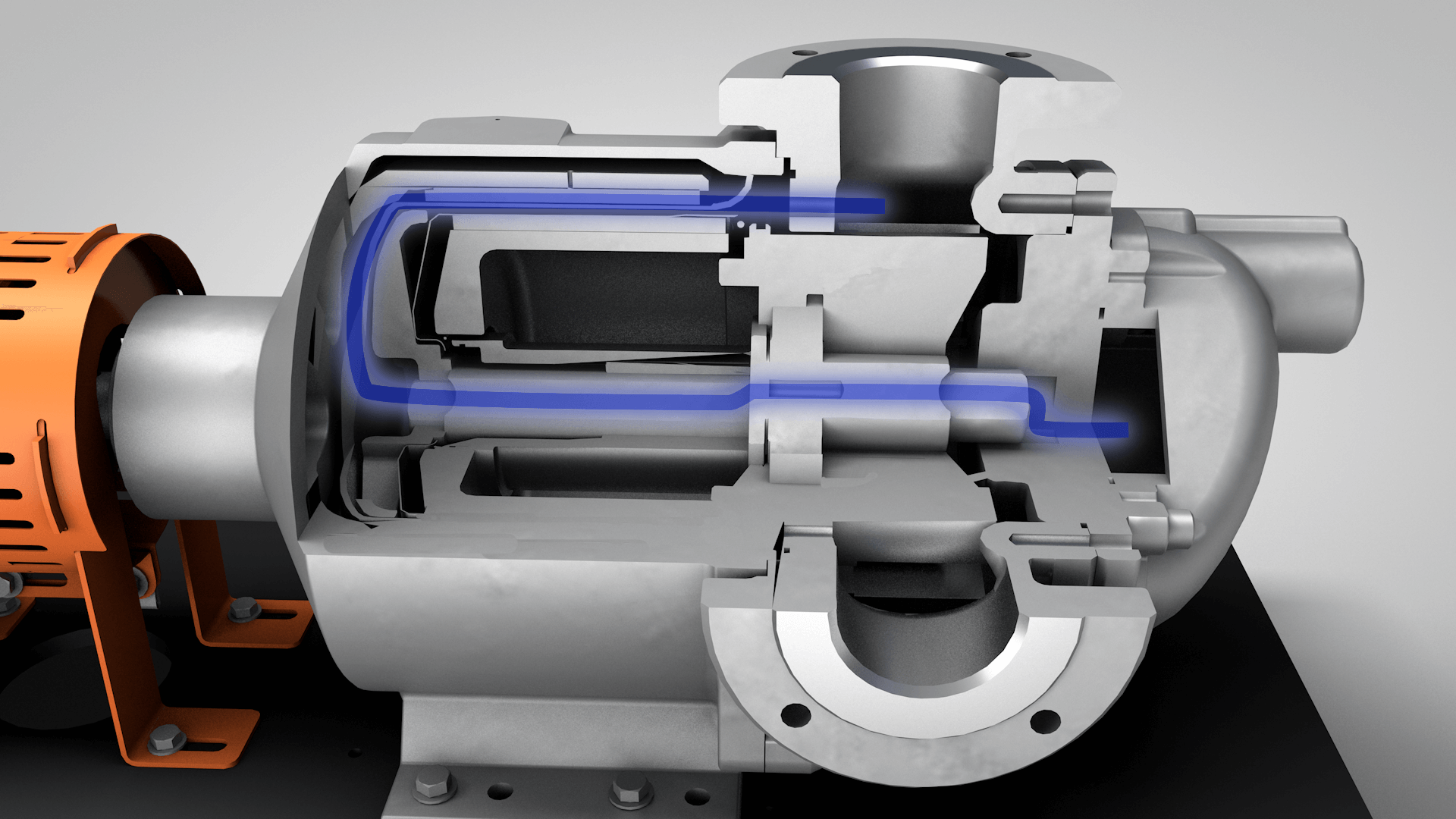

Cooling Path
- Oversized cooling path for enhanced cooling of magnetic coupling
- Complete circulation of fluid within containment canister
- Enables lubrication of radial bushings

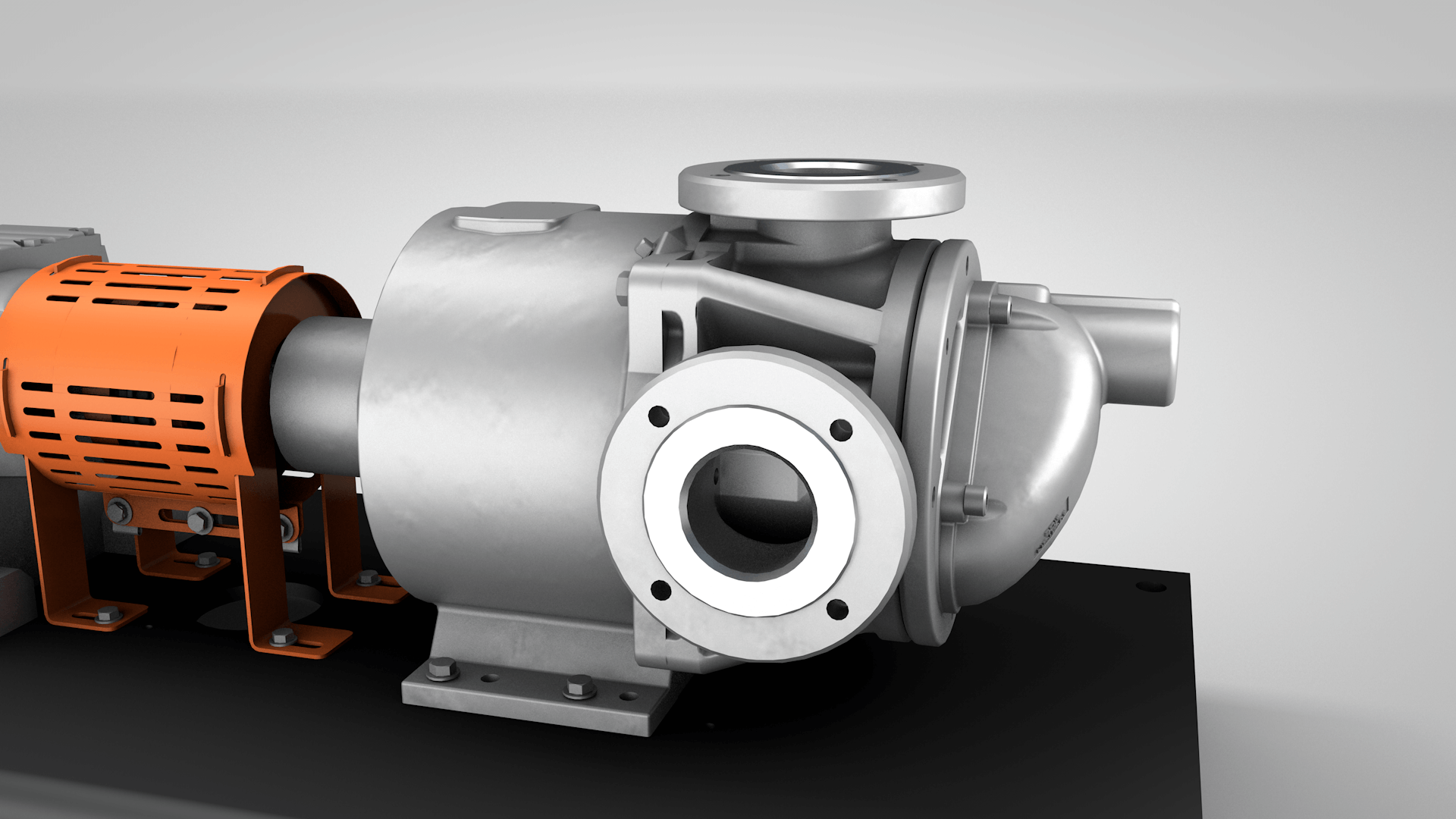

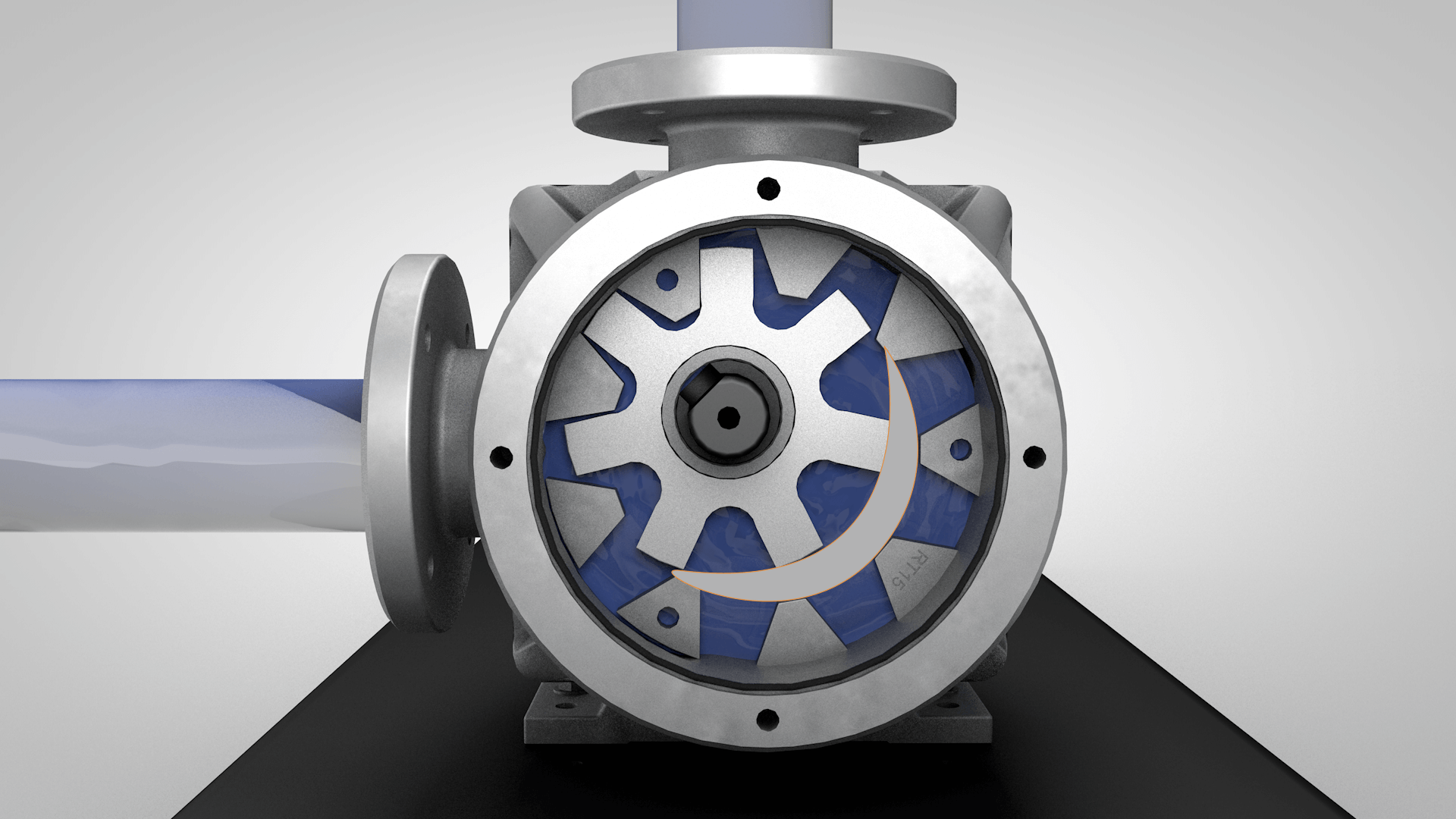

Fluid Path
- Both 90 degree and 180 degree port option available
- Foot print interchangeable with most mechanically sealed and seal-less internal gear pumps in use today, with no need for piping, driver, baseplate or coupling modifications

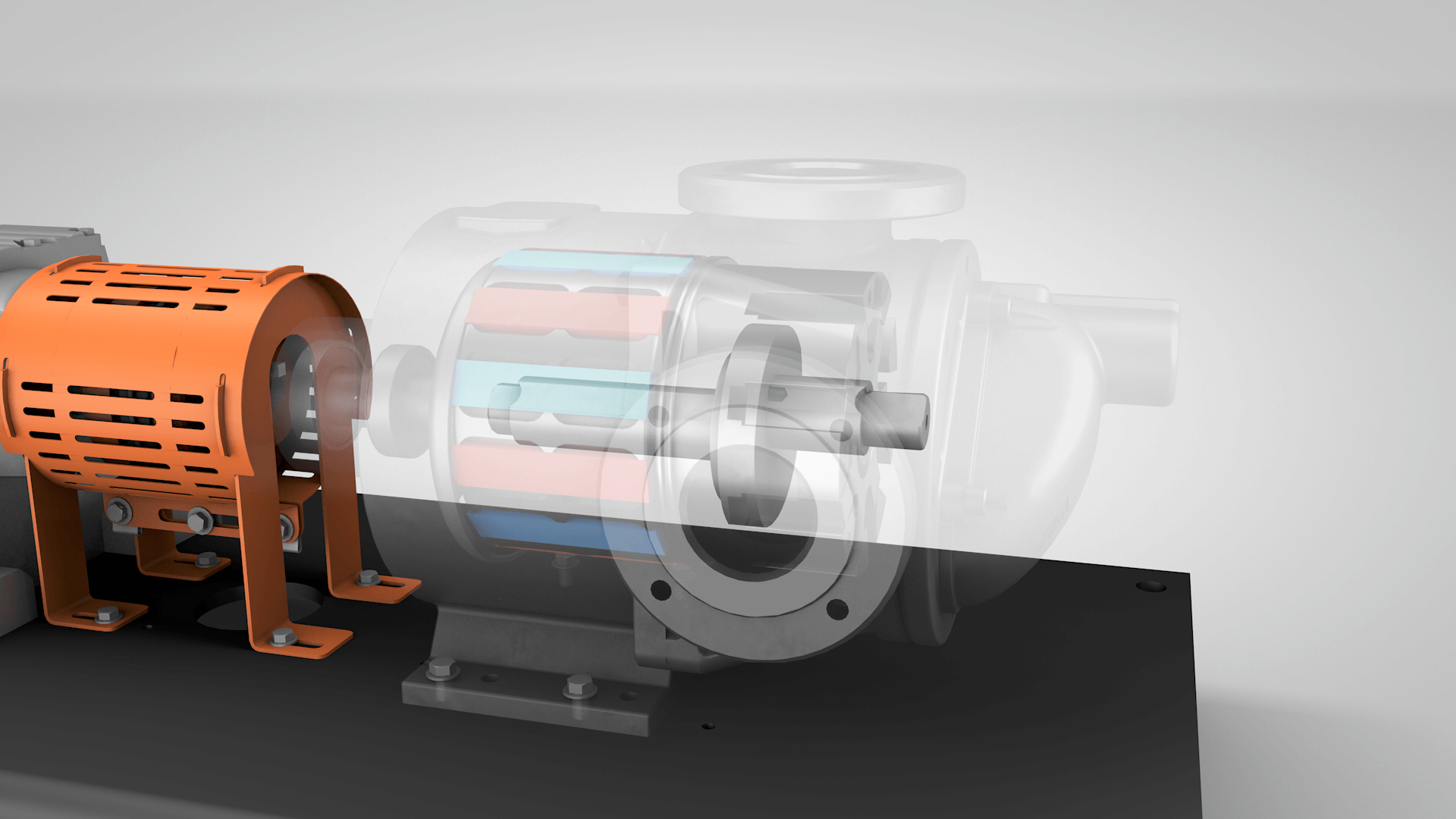

Between the Bearing Support
- Reduce maintenance costs by eliminating deflection; maximizing life of rotor, idler, and bushings
- Eliminate wear and failures caused by cantilever loads
- Enables single fluid chamber design, minimizing footprint and maximizing cooling efficiency

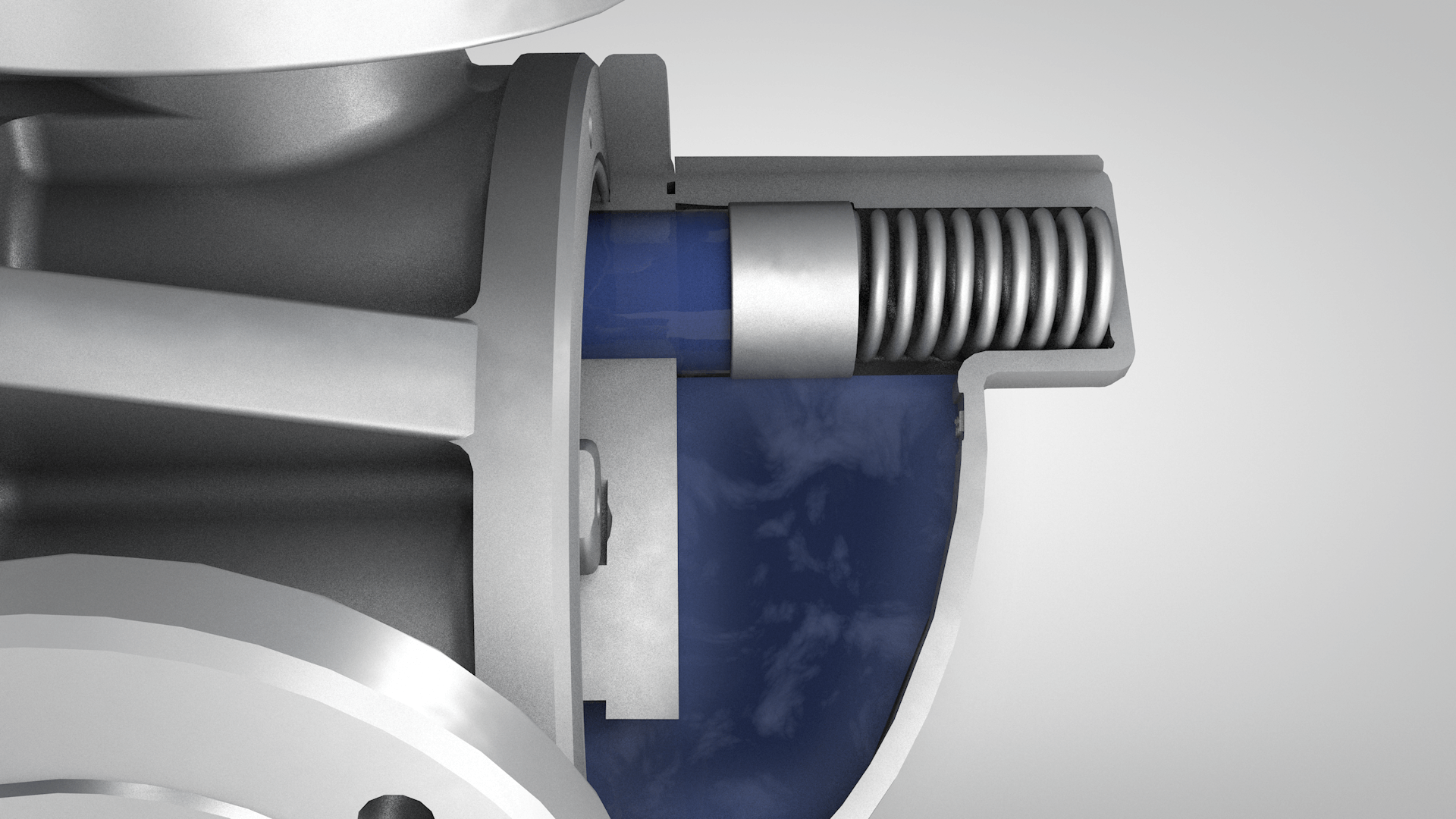

Pressure Relief Valve
- Simple design containing only three parts and sealed with an O-Ring
- Relieves by “cracking” at nominal pressure relief valve setting
- Relief pressure ranges between 25 to 200 psi
