Wilden AODD Double Diaphragm Pump - 6 mm (1/4 in.) - Pro-Flo Bolted Plastic - P25

6 mm (1/4") Pro-Flo® Series Bolted Plastic AODD Pump P25

AIR INLET
  • 1/8" FNPT
LIQUID INLET
  • 6 mm (1/4")
LIQUID DISCHARGE
  • 6 mm (1/4")
CONNECTION TYPE
  • NPT/BSPT (Threaded)
MAX SUCTION LIFT CAPABILITY
  • PTFE – 1.9 m (6.2') Dry, 9.3 m (30.6') Wet
MAX FLOW RATE
  • PTFE – 16.7 lpm (4.4 gpm)
MAX PRESSURE
  • 8.6 bar (125 psi)
MAX DIAMETER SOLIDS
  • 0.7 mm (1/32'')
DISPLACEMENT PER STROKE *
  • PTFE – 0.04 L (0.01 gal)
    • * 1 cycle = 2 strokes
Order Online
  • icon_cert-CE

Features and Benefits

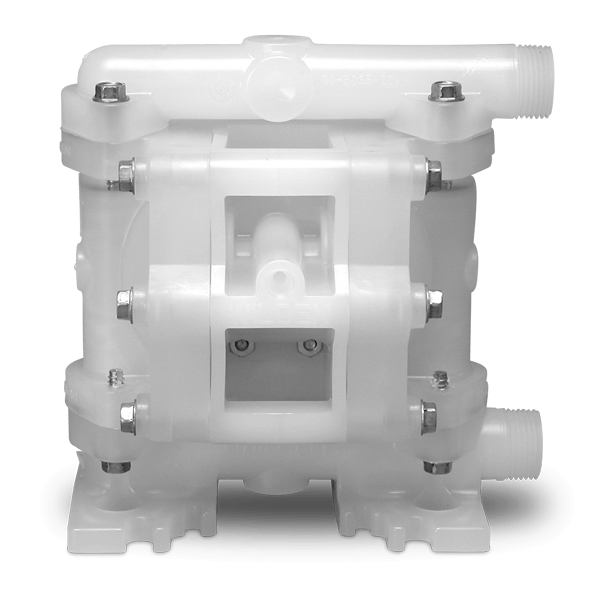

The Wilden® bolted plastic air-operated double-diaphragm (AODD) pump combines maximum performance and efficiency with superior containment. Wilden's bolted-construction pumps offer improved flow rates and a redesigned liquid path that reduces internal friction for maximum output and longer diaphragm life.

  • NPT or BSPT threaded inlet/discharge liquid connections
  • Decades of proven performance
  • Bolted construction for superior containment
  • Large-solids passage
  • High suction lift
  • Ease of operation and maintenance
  • Increased on/off reliability
  • Longest Mean Time Between Repair (MTBR)

Downloads

EOMs

6 mm (1/4'') Pro-Flo Bolted Plastic Pump
Model: P25 | Code: WIL-11020-E-03

Dimensional Drawings

P25

Spec Sheets

Model: P25 | Code: WIL-11020-T-01

3D Models

P25

Performance and Specifications

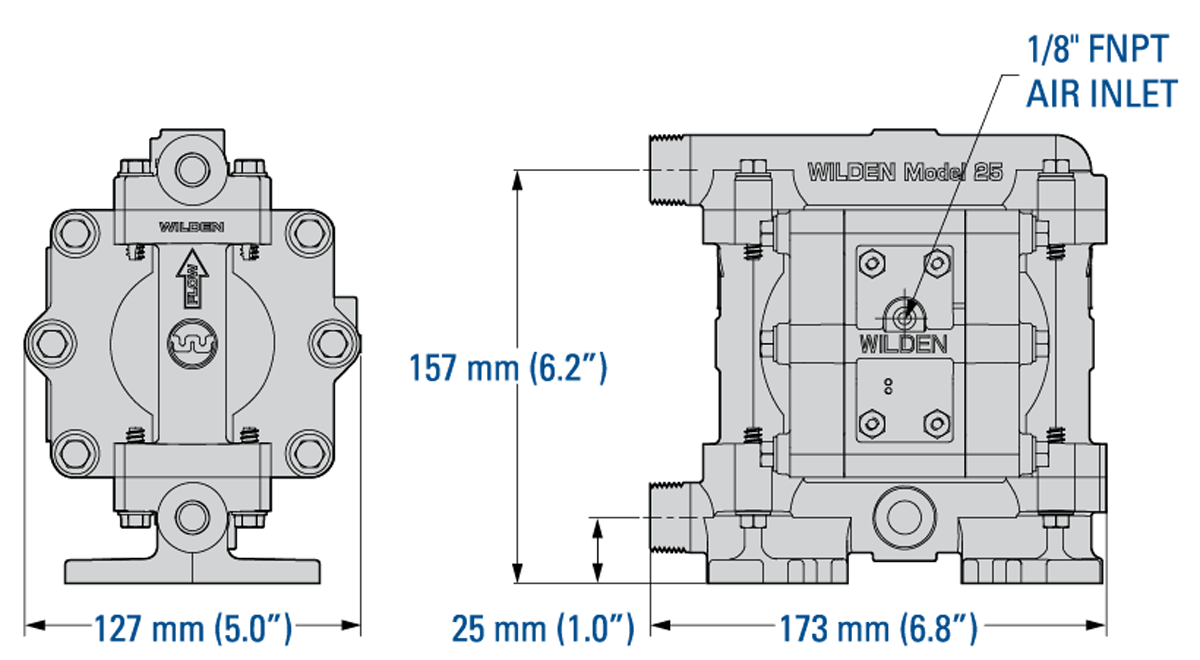

Dimensions

Dim-P25-6mm.25in-BPP

Note: Dimensions vary by material and connection. For additional information, please refer to the P25 Plastic Manual.

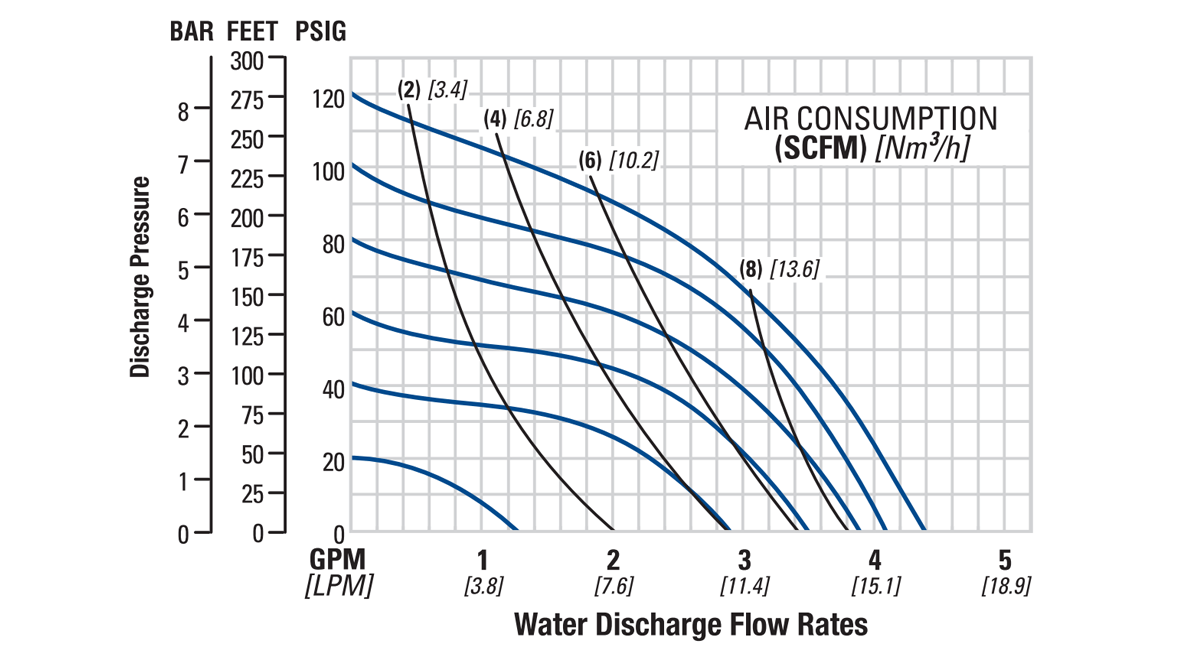

Flow Curve – PTFE-Fitted

Flo-P25-6mm.25in-BPP

Note: Additional performance curves can be found in the P25 Plastic Manual.

AIR INLET
  • 1/8" FNPT
LIQUID INLET
  • 6 mm (1/4")
LIQUID DISCHARGE
  • 6 mm (1/4")
CONNECTION TYPE
  • NPT/BSPT (Threaded)
MAX FLOW RATE
  • PTFE – 16.7 lpm (4.4 gpm)
MAX PRESSURE
  • 8.6 bar (125 psi)
MAX DIAMETER SOLIDS
  • 0.7 mm (1/32'')
MAX SUCTION LIFT CAPABILITY
  • PTFE – 1.9 m (6.2') Dry, 9.3 m (30.6') Wet
DISPLACEMENT PER STROKE *
  • PTFE – 0.04 L (0.01 gal)
    • * 1 cycle = 2 strokes

Wetted Housings

Material Ship Weight
Polypropylene 2 kg (4.4 lb)
PVDF 2.6 kg (5.75 lb)

Non-Wetted Housing

Description Materials
Center Section Polypropylene
Air Valve Polypropylene

Elastomer Options

Material Temperature Limits
EPDM -51°C to 138°C (-60°F to 280°F)
FKM -40°C to 177°C (-40°F to 350°F)
Neoprene -18°C to 93°C (0°F to 200°F)
PTFE* 4°C to 104°C (40°F to 220°F)

* 4°C to 149°C (40°F to 300°F) - 13 mm (1/2") and 25 mm (1") models only
