1 in. All-Pur™️ FDA (F Series) AODD Pump F100

Air Inlet
  • 1/4" FNPT
Liquid Inlet
  • 1-1/2"
Liquid Discharge
  • 1-1/2"
Connection Type
  • Tri-Clamp®
Max Suction Lift Capability
  • 17 ft-H2O (5.2 m-H2O) Dry
  • 30 ft-H2O (9.1 m-H2O) Wet
Max Flow Rate
  • 48 gpm (182 lpm)
Max Pressure
  • 120 psi (8.2 bar)
Max Diameter Solids
  • 1/4" (6.4 mm)
Order Online
  • CE Icon
  • ATEX Icon
  • FDA Icon

Specifications

Physical Specifications
Liquid Port Size: 1-1/2 in.
Liquid Connection Size: Tri-Clamp
Standard Suction Port: Right
Standard Discharge Port: Right
Air Inlet Connection Size: 1/4 in. FNPT
Air Exhaust Connection Size: 3/4 in.
Weight: 38 lbs (17 kg)
Construction
Wet End: Passivated Stainless Steel
Air End: Aluminum
Diaphragm: Hytrel®, PTFE, Santoprene®
Valve: Buna-N, PTFE, Santoprene®
Seat: Stainless Steel
O-Rings: Buna-N, EPDM, PTFE
Hardware: Stainless Steel
Muffler: Metal, Plastic

Performance

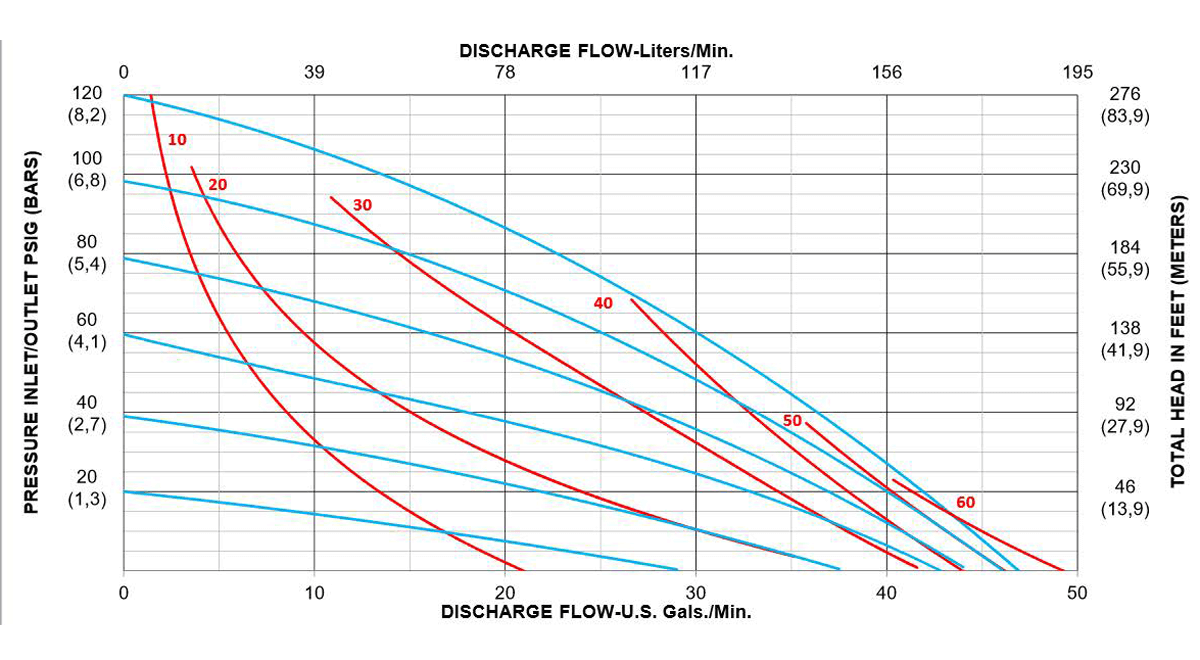

Performance Curve

F-Series-Performance-Curves_F100_Metal_Rubber

Note: Additional performance curves can be found in the download section.

Performance
Max Flow: 48 gpm (182 lpm)
Max Air Pressure: 120 psi (8.2 bar)
Suction Lift (Dry): 17 ft-H2O (5.2 m-H2O)
Suction Lift (Wet): 30 ft-H2O (9.1 m-H2O)
Max Solids: 1/4 in. (6.4 mm)

Popular Models

STAINLESS STEEL
F100-TAE-TT3T-S70 Tri-Clamp, PTFE Diaphragm, PTFE Ball, Stainless Steel Seat, PTFE O-Ring, Stainless Steel Hardware
F100-TAE-4S3M-S70 Tri-Clamp, Santoprene® [FDA] Diaphragm, Santoprene® Ball, Stainless Steel Seat, EPDM [FDA] O-Ring, Stainless Steel Hardware
F100-TAE-HB3B-S70 Tri-Clamp, Hytrel® [FDA] Diaphragm, Buna-N [FDA] Ball, Stainless Steel Seat, Buna-N [FDA] O-Ring, Stainless Steel Hardware

Downloads

IOMs

F100 Metal IOM
Size: 1 in. | Code: ALF-13060-E-02

Performance Curves

F Series Specialty Performance Curves
Sizes: 1 in., 1-1/2 in., 2 in.

Spec Sheets

SPEC SHEET F100 – 1 in. All-Pur™ FDA Pump
Code: SPSHT-F100-01

Dimensional Drawings

F100 Metal 2D Drawing
Size: 1 in.

3D Models

F100 Metal 3D Drawing
Size: 1 in.

Exploded Views

F Series Exploded Views
Sizes: 1 in., 1-1/2 in., 2 in.
