Learn More About the Accuracy Parameters for the SonoTT™ aQuila System

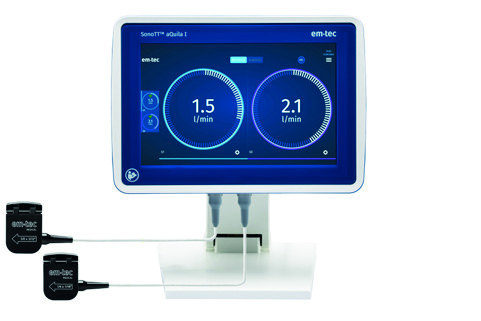

1. For a non-invasive measurement of volumetric blood flow rates, up to two sensors can be used with this class Im system.

2. For best measurement results, check the correct sensor position on the tubes.

3. The ultrasonic signal is influenced by five parameters:

• Medium type
• Medium temperature
• Tube size
• Tube material
• Flow range

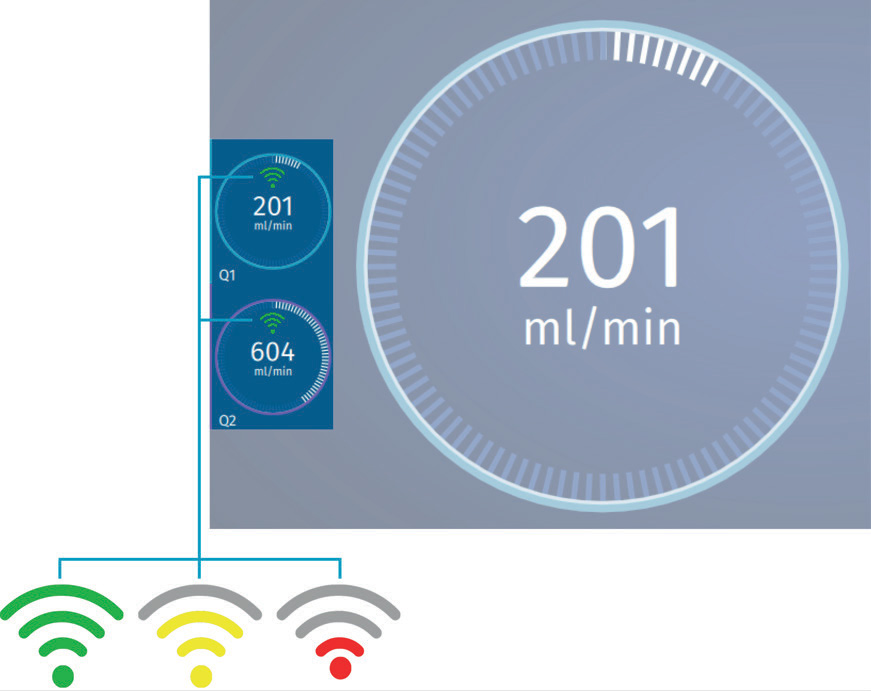

4. As our ultrasound-based measurement principle is dependent on a strong signal, the acoustic coupling. This is displayed as a colored symbol with green indicating good signal quality.

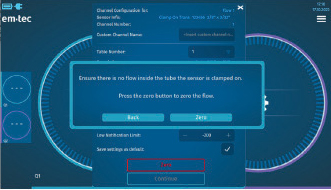

5. Before each measurement, carry out a zero flow adjustment to level existing offset. While doing so, ensure that the liquid does not move.

6. Made for long-term use, our system is a very low maintenance system. Nevertheless, to maintain the accuracy, please regularly carry out the following:

• Visual checks for damages
• Cleaning the system using the recommended detergents
• Recalibrations and safety checks every 24 months
