Disposable Pumps for the Consumer and Industrial Market

Body care products, aerosols, detergents, paints, moulding additives… the list of products that can be dispensed by the Quantex pump is endless.

The innovative pump can produce high pressures, high vacuum, high accuracy even with high viscosity liquids, varying temperatures and back pressures. The pump materials can be altered to suit the chemicals being pumped. The standard housing and rotor materials are Polypropylene and HDPE. A rubber seal is usually moulded from Nitrile but can be produced in chemical resistant Viton or EPDM if required.


Typical Dispenser Implementation for the Consumer Market

Gas-free Dispensing and Atomising Concept

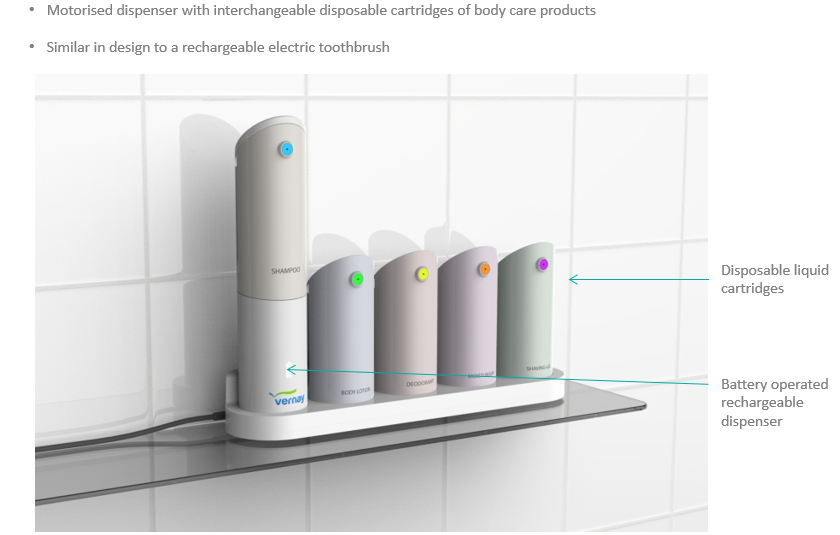

Gas Free Dispensing Atomising 1

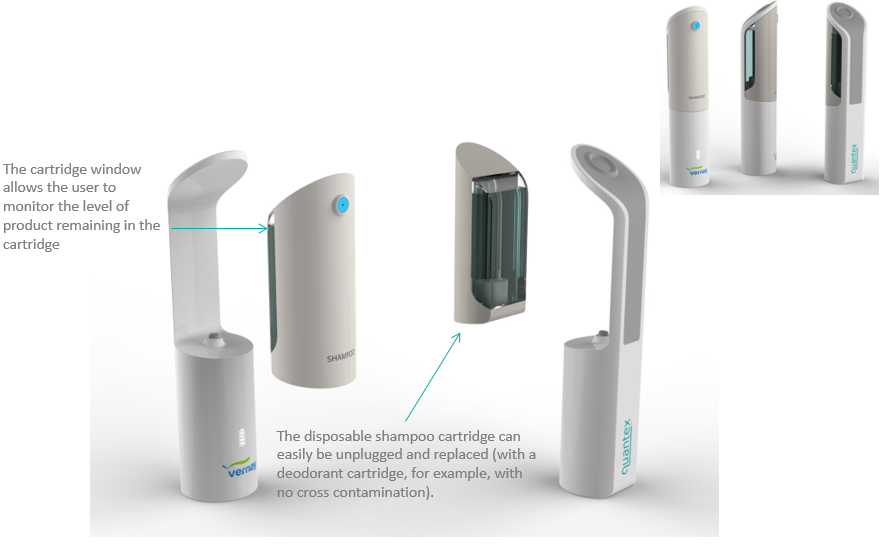

Gas Free Dispensing Atomising 2

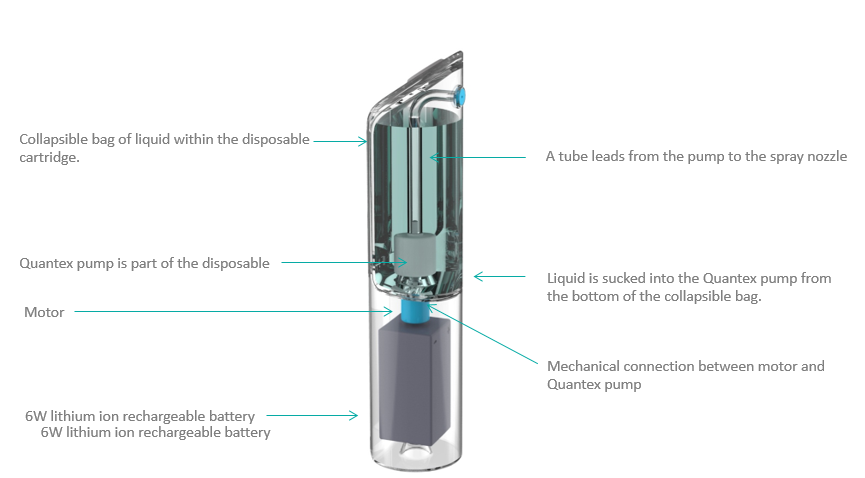

Gas Free Dispensing Atomising 3

About Consumer & Industrial

Quantex single-use pumps can be used for almost any application. Contact us to learn more or check out our product catalogue.

View Our Pump Catalogue

Application Areas

  • Aerosol replacement*
  • Body Care
  • Detergents
  • Foaming
  • Hair products
  • Aerosol detergents
  • Pump 2 liquids at the same time
  • Fragrances
  • Janitorial detergents
  • In pump mixing
  • Beauty products
  • High concentrated chemicals
  • In pump dilution
  • Beauty regimes
  • Hands free dispensing
  • Dry connect systems
  • Paints
  • Colouring
  • Weed killer
  • Industrial washing machines
  • Additives
  • Pesticides
  • Industrial dish washers
  • Moulding additives
  • Plant feeder
  • White goods dispensers
  • Spray paints
  • Plant watering
  • Marker paints
  • Automotive aftercare products
  • Washing Machine detergents and additive dispenser
  • De-scalers

*The high pressure pumps can create sprays using Mechanical Break Up nozzles (MBU).

Pump Finder Tool

Use the fields below to help you identify which Quantex pump is most suitable for you.




Flow (LPM)

0.26-2.6 L/h 4.3-43 ml/min 0.07-0.7 ml/s

QX2-SD



QX2-SD

2.3-23 L/h 38-380 ml/min 0.63-6.3 ml/s

QX25-SD



QX25-SD

2.3-23 L/h 38-380 ml/min 0.63-6.3 ml/s

QX25-HP



QX25-HP

12-120 L/h 200-2000 ml/min 3.3-33 ml/s

QX120-DL



QX120-DL

2.3-63 L/h 38-1050 ml/min 0.63-17.5 ml/s

QX60-HS



QX60-HS

5.4-54 L/h 90-900 ml/min 1.5-15 ml/s

QX55-SD



QX55-SD

5.4-54 L/h 90-900 ml/min 1.5-15 ml/s

QX55-HP



QX55-HP

14.2-142 L/h 237-2367 ml/min 3.9-39 ml/s

QX140-DL



QX140-DL

5.4-148 L/h 90-2467 ml/min 1.5-41 ml/s

QX150-HS



QX150-HS

9.7-97 L/h 162-1612 ml/min 2.7-27 ml/s

QX100-SD



QX100-SD

9.7-97 L/h 162-1612 ml/min 2.7-27 ml/s

QX100-HP



QX100-HP

26.1-261 L/h 435-4350 ml/min 7.3-73 ml/s

QX260-DL



QX260-DL

9.7-267 L/hr 162-4450 ml/min 2.7-74 ml/s

QX265-HS



QX265-HS
