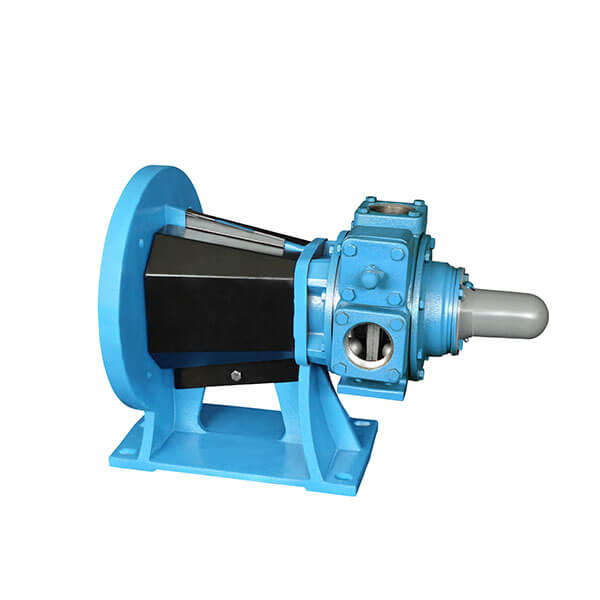

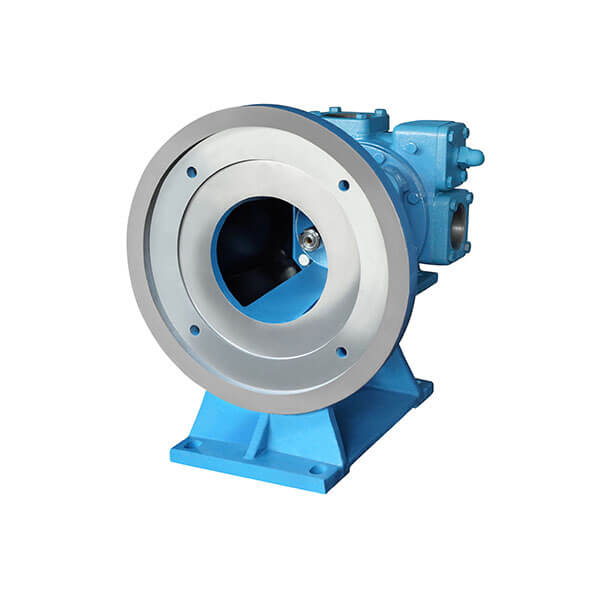

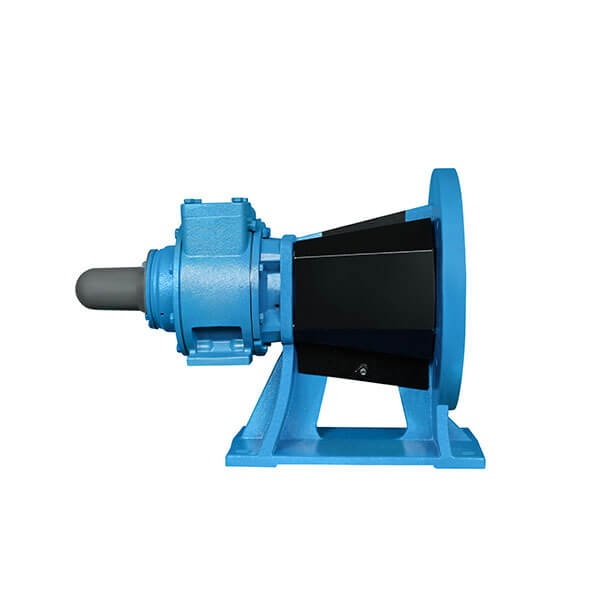

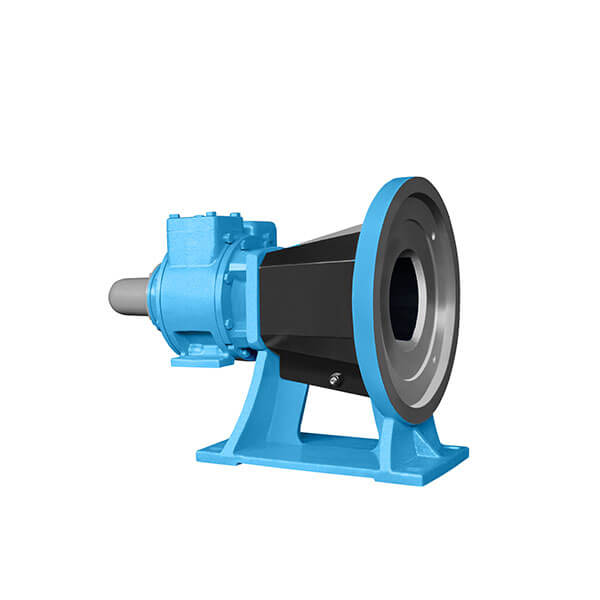

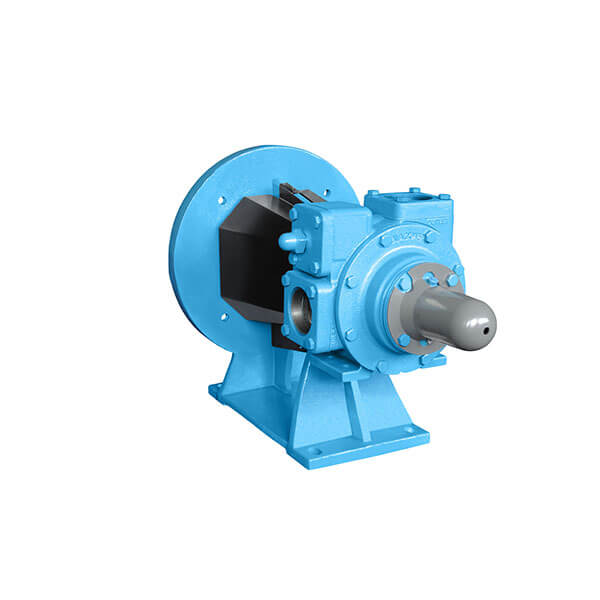

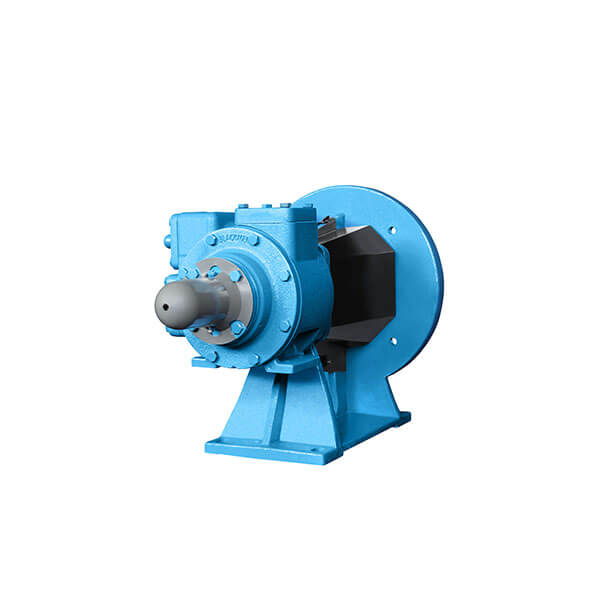

High speed, high flow, compact, bi-directional and self-priming are just a few of the benefits of Direct Drive Series Sliding Vane Pumps. Available in 2- and 2.5-inch sizes, these motor speed, Direct Drive Sliding Vane Pumps are designed for fast loading and unloading of thin viscosity fluids (0.2 - 20 cP). Alignment-free Direct Drive Series Sliding Vane Pumps eliminate the need for a V-belt or gear reducer, ensuring a small compact footprint thanks to an adapter that directly couples the pump to a 50- or 60-Hz motor.
With its compact size, ability to be mounted in any orientation – vertical, horizontal, or inverted – and capability to be used in portable mobile installations, the Direct Drive Series provides flexibility in almost any tank loading or unloading application.

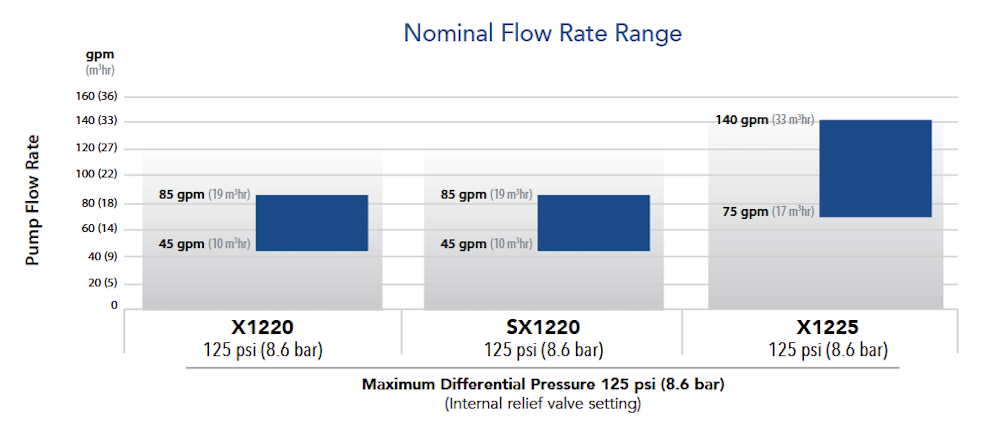

Available in iron and stainless-steel construction, Direct Drive Series Pumps have a maximum differential pressure of 125 psi (8.6 bar) and can achieve flow rates up to 145 gpm (33 m3/hr) with the 2.5-inch model and 85 gpm (19 m3/hr) with the 2-inch model.
