M-1500MB ULTRASONIC FLOW METER High Purity Ultrasonic Flow Meter with Remote Electronics and Inline Flow

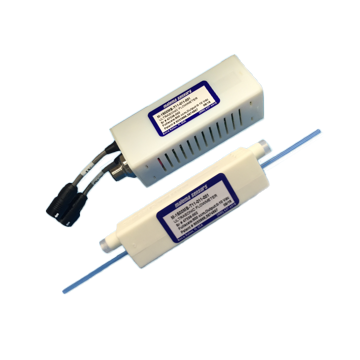

The M-1500MB Series Inline Ultrasonic Flow Meter consists of a compact flow sensor and remote electronics. The M-1500MB Inline Ultrasonic Flow Meter utilizes the latest digital signal processing (DSP) technology and provides flow measuring solutions with minimum compromise in performance. Designed for use in the industries where minimal footprint, high purity, and corrosion resistant wetted parts are required.

Features

  • Minute flow measurements down to 4 ml/min
  • Compact Sensor and Electronics
  • Straight flow path
  • All wetted parts made of PFA
  • Free from ion or particle contamination
  • No Dead Legs
  • No Obstructions
  • No Moving Parts in the flow path
  • Corrosion resistant

Applications

  • Medical devices
  • Wet process / Chemical distribution systems
  • CMP, ECD, Electroless Deposition, Wet Clean and Track tools in semiconductor manufacturing
  • Solar PV equipment
  • Laser equipment
  • Cooling systems

Specifications

Product Specifications

Sensor Configuration Straight Flow Through Sensor
Accuracy ± 2%
Tube Outer Diameter 1/8"
Fluid Type Liquids
Repeatability ± 1% of flow reading, down to 10% of full scale
Temperature Ambient: 0 - 46°C | Fluid: 10 - 60°C
Operating Pressure 70 psig (max.)
Flow Range 4 - 600 ml/min

Sensor Material Specifications

Housing (Size 10 / 15 / 20)
  • PTFE
Wetted Parts, Body / Tube
  • PFA / PFA
End Cap (Size 04 / 06)
  • PP
Cable Fitting
  • PP
Cable Jacket
  • PVC
