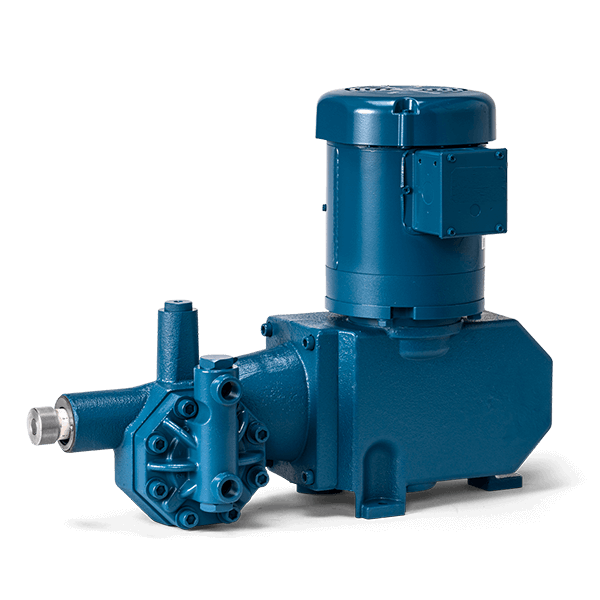

6000 Series Hydraulic Diaphragm Pumps

6000 Series Hydraulic Metering Pumps are designed for low-volume, high-pressure applications.

Liquid Head Materials of Construction
  • 316SS
Diaphragms
  • PTFE
Capacity
  • 4.5 gph (16 L/h) to 34.5 gph (131 L/h)
Max Pressure
  • 4,000 psi (275.8 bar)
Max Temperature
  • 200°F (93°C)
Standard Motor
  • 1/2HP to 3HP
logo_choice Select Your Pump
  • icon_cert-CE
  • American Petroleum Institute Logo

Features and Benefits

  • EZE-CLEAN™ Valves – feature cartridges that can be removed for cleaning without disturbing the piping to the pump

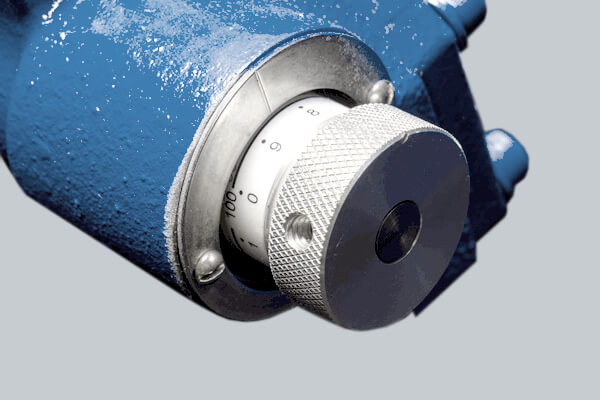

  • Ten turn micrometer dial calibrated in 1% increments, with the ability to adjust capacity from 10% to 100%
  • Variable Oil By-Pass™ Stroke Adjustment provides a better valve performance when compared to variable linkage designs
  • Bright color contrasted dial protected from corrosion by clear PVC Covering
  • Stroke mechanism moves only when adjustment is made, eliminating wear
  • Piston is powered through complete stroke length at all capacity adjustments, eliminating stress, wear and shock of lost motion designs
