Neptune Direct Drive Air Driven Mixer - BC Neptune Direct Drive Air Driven Mixer - BF

Direct Drive Air-Driven Mixers - BF & BC Series

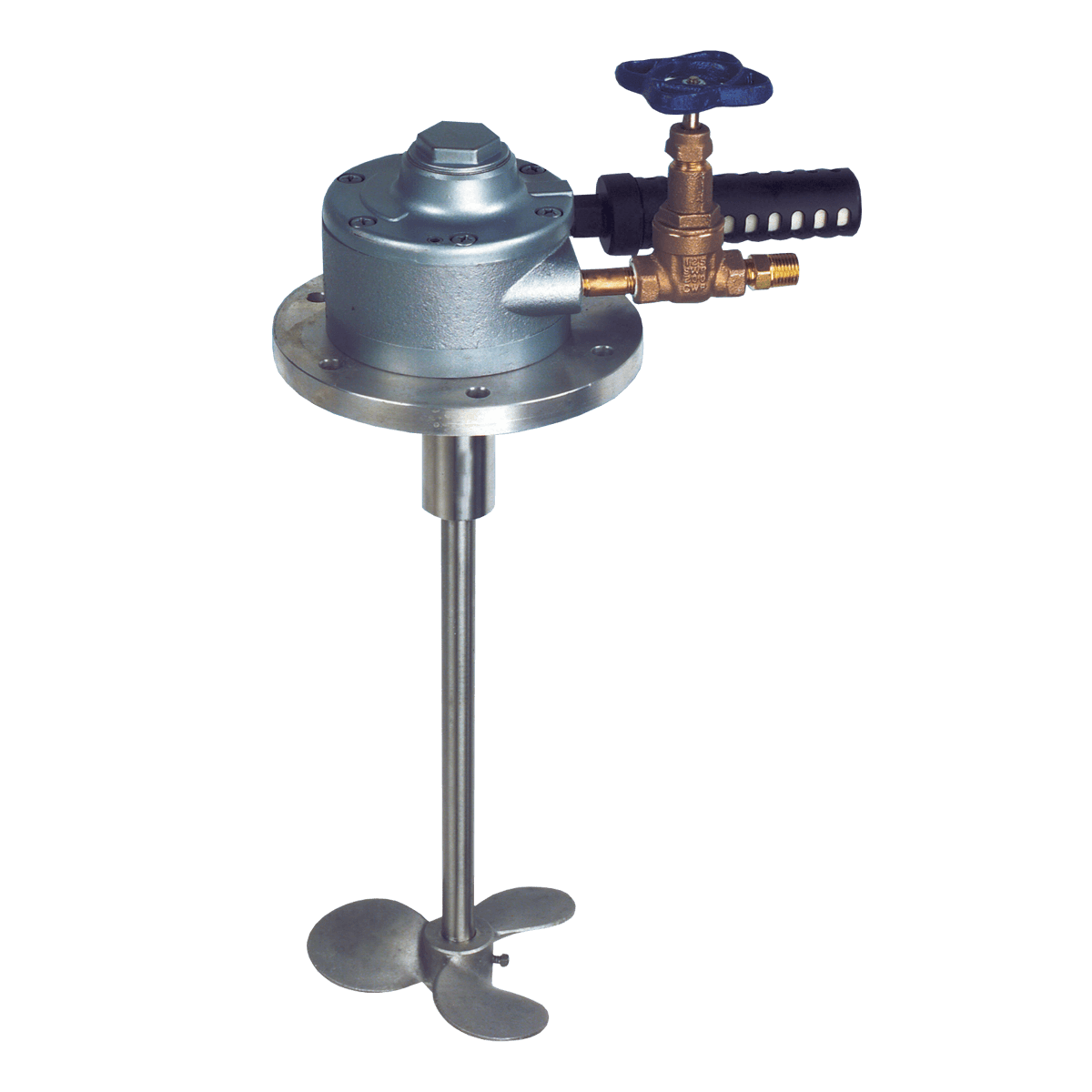

Neptune’s extensive line of portable mixers also include direct drive air-driven mixers. Neptune’s BF Series flange mounted air-driven mixers are available in both single and dual propellers. Single propeller models have one left-handed propeller pumping downward in normal operation. Dual propeller models have one each left-hand and right-hand propellers providing counter flow mixing.

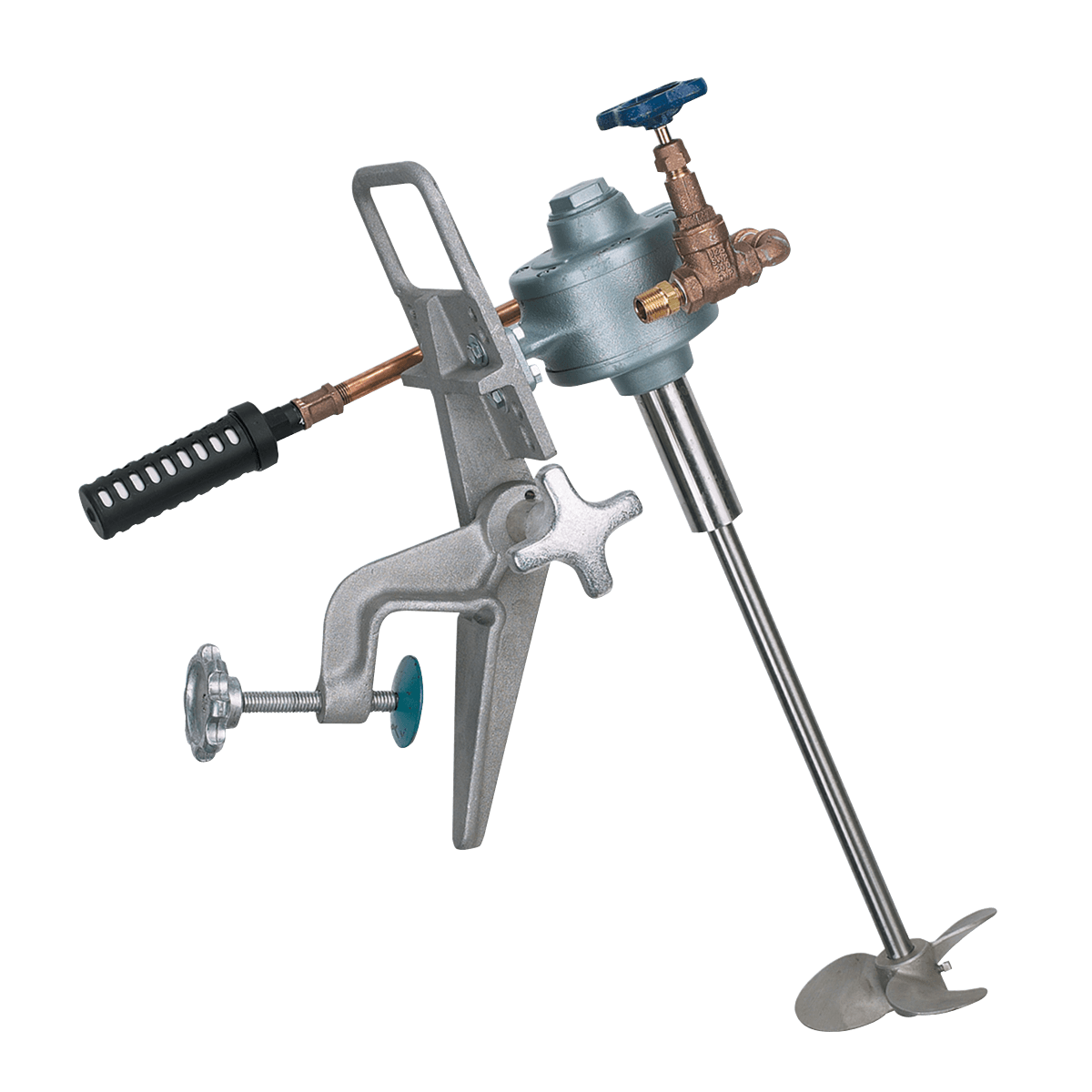

Neptune’s BC Series clamp mounted air-driven mixers feature a knob and handle. The knob allows the clamp to be loosened without tools to adjust the shaft angle and the handle allows a firm grip on the mixer when adjusting the position. The BC Series also features three blade left-hand marine propellers that pump downward in normal operation.

Propeller and Shaft Material
  • 316SS as standard
Housing Material
  • Cast aluminum
Motors
  • Air Motor
Shaft Length
  • 15" (381 mm) to 60" (1,524 mm)
Shaft Diameter
  • 5/8" (16 mm) to 1" (25 mm)
Propeller Size
  • 6" (152 mm) to 10" (254 mm)
logo_choice Select Your Pump

Features and Benefits

  • Air control valve included to allow speed adjustment
  • Motor may be stalled without damage
