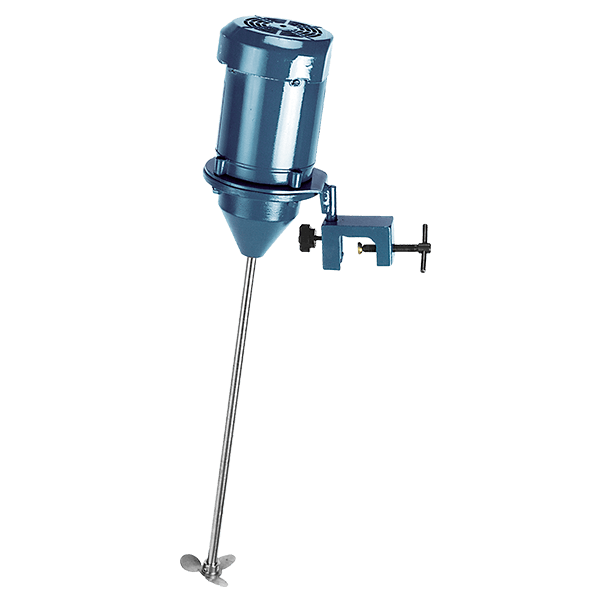

Neptune Small Direct Drive Mixer

Small Direct Drive Mixers - BN Series

BN Series mixers are Neptune’s premier line of small direct drive mixers. BN Series mixers are best for small batch mixing applications with low viscosity fluids. To help select which BN Series mixer is right for your application, refer to Neptune’s mixer selection guide.

Propeller and Shaft Material
  • 316SS as standard
  • PVC Coating available
Housing Material
  • Cast aluminum
Motors
  • Totally-Enclosed Fan-Cooled
  • Explosion-Proof Enclosures Class 1 Group D
  • Air Motor
Shaft Length
  • 32" (813 mm)
Shaft Diameter
  • 1/2" (25 mm) to 5/8" (16 mm)
Propeller Size
  • 4" (102 mm)
logo_choice Select Your Pump

Features and Benefits

  • Easy mounting – clamp cannot slip, preventing propeller from hitting side of tank
  • Quick, easy adjustment between “angled-on-center” and “angled-off-center” positions – no tools required
  • Clamp adjusts to any angle
  • Fully enclosed coupling
  • Off-the-shelf delivery
